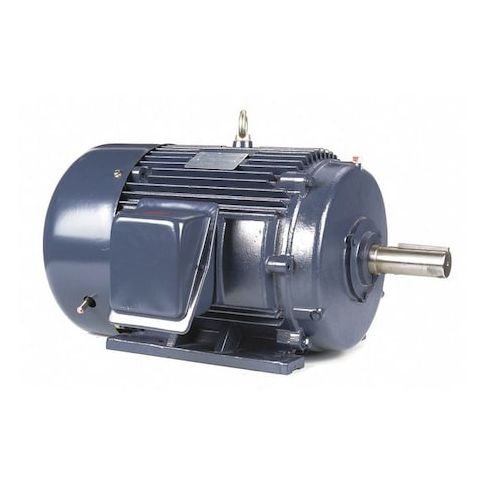

Three-Phase General Purpose Motor, 25 HP, 324T Frame, 230/460V AC Voltage, 1184 rpm Nameplate RPM MPN:324TTFCD6076
Three-Phase General Purpose Motor, 25 HP, 324T Frame, 230/460V AC Voltage, 1184 rpm Nameplate RPM
This 25 HP three-phase general purpose motor from Marathon is designed for demanding industrial applications. With a nameplate RPM of 1184 and a thermal protection class of None, it provides reliable performance in a variety of settings. Its totally enclosed fan cooled motor enclosure design and cast iron frame ensure durability and longevity. Suitable for use in continuous duty applications, this motor is ideal for manufacturing, processing, and material handling industries. Its high efficiency of 95.4% and low amp draw of 64.0/32.0 A make it an economical choice for reducing energy costs and increasing productivity.
Top product features:
- Three-phase operation allows for efficient use of power
- Totally enclosed fan cooled motor enclosure design provides a safe and reliable operation environment
- Ball motor bearings ensure smooth and quiet motor operation
Top product applications:
- Pump and fan drives in industrial and commercial settings
- Heavy-duty conveyor belt drives
- Industrial power generation and transmission equipment
General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 25 HP, Nameplate RPM 1184 rpm, Frame 324T, Voltage 230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 64.0/32.0 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Cast Iron, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 95.4 Percent, Continuous Duty, 1,101-1,200
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 38.50
- Package Width: 32.00
- Package Height: 26.00
- Package Weight: 567.00
Product info last updated on February 3, 2026 1:37pm UTC
Category: Motors
