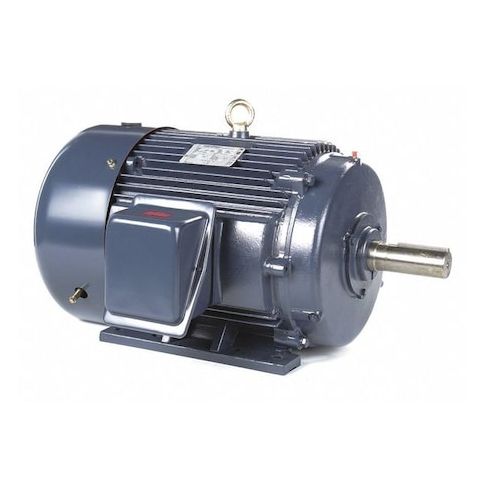

Three-Phase General Purpose Motor, 25 HP, 324T Frame, 575V AC Voltage, 1184 rpm Nameplate RPM MPN:324TTFCD6080
Three-Phase General Purpose Motor, 25 HP, 324T Frame, 575V AC Voltage, 1184 rpm Nameplate RPM
General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 25 HP, Nameplate RPM 1184 rpm, Frame 324T, Voltage 575V AC, 60 Hz Hz, Three Phase, Full Load Amps 25.6 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Cast Iron, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 95.4 Percent, Continuous Duty, 1,101-1,200, CE, CSA, UL Listed
Additional Information
- Country of Origin: MX
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 15 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 35.00
- Package Width: 26.00
- Package Height: 25.42
- Package Weight: 627.00
Product info last updated on January 27, 2026 3:16pm UTC
Category: Motors
