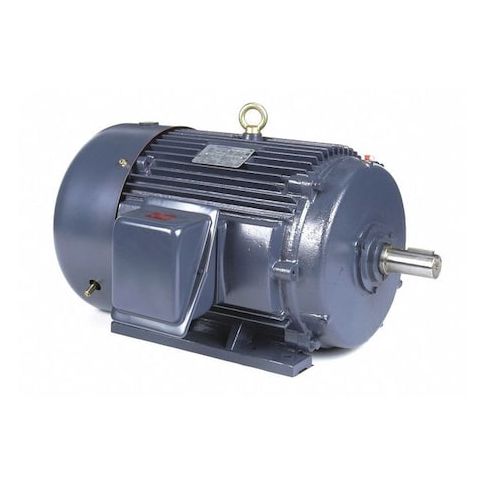

Three-Phase General Purpose Motor, 50 HP, 326TS Frame, 230/460V AC Voltage, 3568 rpm Nameplate RPM MPN:326TSTFCD6001
Three-Phase General Purpose Motor, 50 HP, 326TS Frame, 230/460V AC Voltage, 3568 rpm Nameplate RPM
This 50 HP three-phase general purpose motor from Marathon is designed for heavy-duty applications that require reliable and efficient power. With a nameplate RPM of 3568 and a totally enclosed fan cooled motor enclosure, it can withstand harsh environments and provide continuous duty operation. The motor features a rigid base mounting type and ball bearings for smooth operation. Its high efficiency of 95.8% and service factor of 1.15 make it ideal for applications such as industrial processing, manufacturing, and material handling. With a lead time of 15 days and a minimum order quantity of 1, it's perfect for businesses that need a reliable motor quickly.
Top product features:
- Three-phase operation allows for efficient power distribution and reduced energy consumption.
- Totally enclosed fan-cooled motor enclosure design provides a safe and reliable operating environment.
- Ball motor bearings ensure smooth and quiet operation.
Top product applications:
- Pumps and pumping systems
- Industrial machinery
- Fans and blowers
General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 50 HP, Nameplate RPM 3568 rpm, Frame 326TS, Voltage 230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 113.0/56.5 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Cast Iron, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 95.8 Percent, Continuous Duty, 3001-3600
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 29.00
- Package Width: 39.00
- Package Height: 29.00
- Package Weight: 719.00
Product info last updated on February 2, 2026 9:56am UTC
Category: Motors
