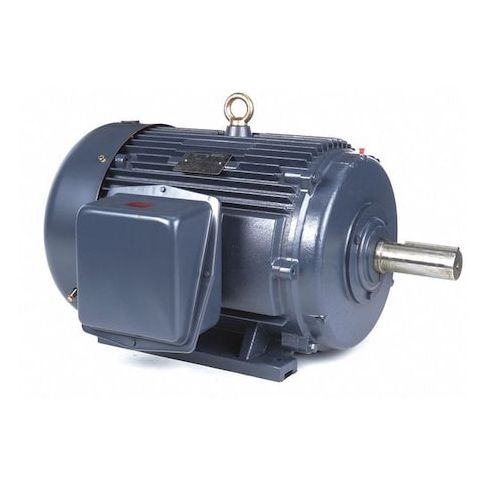

Three-Phase General Purpose Motor, 60 HP, 364T Frame, 230/460V AC Voltage, 1782 rpm Nameplate RPM MPN:364TTFCD6036
Three-Phase General Purpose Motor, 60 HP, 364T Frame, 230/460V AC Voltage, 1782 rpm Nameplate RPM
This 60 HP three-phase general purpose motor from Marathon is designed for heavy-duty applications requiring reliable performance and efficient operation. With a nameplate RPM of 1782 and a maximum ambient temperature of 40 degrees C, it can handle demanding conditions. The totally enclosed fan cooled design and rigid base mounting ensure optimal cooling and stability. Suitable for continuous duty, this motor offers a high nominal efficiency of 95% and a service factor of 1.15. Ideal for use in industrial settings, such as manufacturing facilities, power plants, and water treatment plants, this motor provides a cost-effective solution for demanding applications.
Top product features:
- Three-phase operation for efficient power usage
- Totally enclosed fan cooled motor enclosure for reliable operation in various environments
- Ball motor bearings for smooth and quiet operation
Top product applications:
- Industrial manufacturing
- Conveyor systems
- Pumping stations
General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 60 HP, Nameplate RPM 1782 rpm, Frame 364T, Voltage 230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 138.0/69.0 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Cast Iron, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 95 Percent, Continuous Duty, 1701-1800
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 48.00
- Package Width: 40.00
- Package Height: 30.00
- Package Weight: 993.00
Product info last updated on February 14, 2026 6:09pm UTC
Category: Motors
