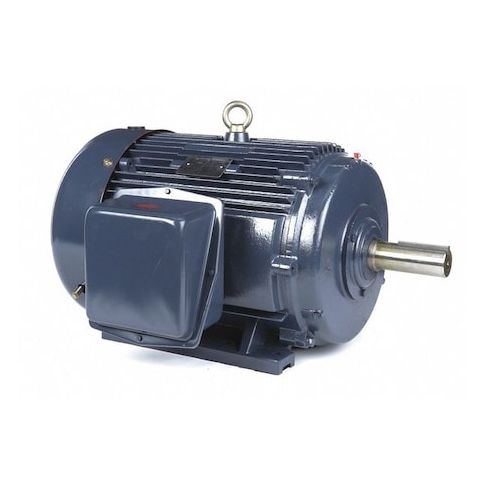

Three-Phase General Purpose Motor, 60 HP, 364T Frame, 575V AC Voltage, 1782 rpm Nameplate RPM MPN:364TTFCD6040
Three-Phase General Purpose Motor, 60 HP, 364T Frame, 575V AC Voltage, 1782 rpm Nameplate RPM
This 60 HP three-phase general purpose motor from Marathon is designed for heavy-duty applications that require high efficiency and reliability. With a nameplate RPM of 1782 and a nominal efficiency of 95%, this motor is perfect for continuous duty use in industries such as manufacturing, oil and gas, and food processing. Its totally enclosed fan cooled design and rigid base mounting ensure optimal performance and durability in harsh environments. CSA certified and UL listed, this motor meets the highest standards of safety and quality, making it an ideal choice for applications that demand maximum performance and minimal downtime.
Top product features:
- Three-phase design provides efficient power distribution
- Totally enclosed fan cooled motor enclosure design allows for reliable operation in harsh environments
- Ball motor bearings enable smooth and quiet operation
Top product applications:
- Industrial machinery manufacturing
- Material handling equipment
- Pumps and compressors
General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 60 HP, Nameplate RPM 1782 rpm, Frame 364T, Voltage 575V AC, 60 Hz Hz, Three Phase, Full Load Amps 55.0 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Cast Iron, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 95 Percent, Continuous Duty, 1701-1800, CSA Certified, UL Listed
Additional Information
- Country of Origin: MX
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 15 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 37.88
- Package Width: 31.88
- Package Height: 25.99
- Package Weight: 987.00
Product info last updated on January 27, 2026 3:52pm UTC
Category: Motors
