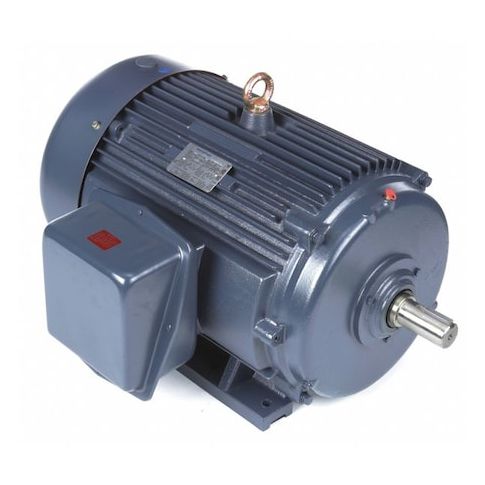

Three-Phase General Purpose Motor, 75 HP, 365TS Frame, 230/460V AC Voltage, 3570 rpm Nameplate RPM MPN:365TSTFCD6001
Three-Phase General Purpose Motor, 75 HP, 365TS Frame, 230/460V AC Voltage, 3570 rpm Nameplate RPM
The Marathon 75 HP three-phase general purpose motor is a reliable and efficient solution for a wide range of industrial applications. With a nameplate RPM of 3570 and a voltage range of 230/460V AC, this motor is perfect for use in factories, manufacturing plants, and other high-volume production settings. Its totally enclosed fan-cooled design and cast iron frame ensure a long lifespan and durability in harsh environments. The motor's high efficiency and continuous duty rating make it an ideal choice for applications such as conveyor systems, pumps, and compressors, where reliability and performance are paramount.
Top product features:
- Totally Enclosed Fan Cooled Motor Enclosure Design
- Ball Motor Bearings
- CW/CCW Motor Shaft Rotation
Top product applications:
- Industrial Pumping Systems
- Chemical Processing Plants
- Power Generation Facilities
General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 75 HP, Nameplate RPM 3570 rpm, Frame 365TS, Voltage 230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 168.0/84.0 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Cast Iron, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 94.1 Percent, Continuous Duty, 3001-3600
Additional Information
- Country of Origin: MX
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 15 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 37.88
- Package Width: 31.88
- Package Height: 26.03
- Package Weight: 1045.00
Product info last updated on February 2, 2026 3:29am UTC
Category: Motors
