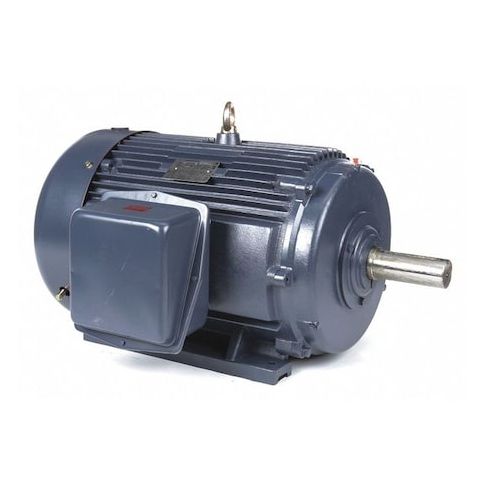

Three-Phase General Purpose Motor, 75 HP, 365T Frame, 230/460V AC Voltage, 1782 rpm Nameplate RPM MPN:365TTFCD6036
Three-Phase General Purpose Motor, 75 HP, 365T Frame, 230/460V AC Voltage, 1782 rpm Nameplate RPM
This 75 HP three-phase general purpose motor from Marathon is designed for heavy-duty applications requiring high efficiency and reliability. With a nameplate RPM of 1782 and a nominal efficiency of 95.4%, this motor is ideal for continuous duty operations in environments up to 40°C. The totally enclosed fan cooled design and rigid base motor mounting ensure reliable performance in a variety of applications, including manufacturing, processing, and material handling. Its compact 365T frame and 230/460V AC voltage make it a versatile solution for a range of industries, including oil and gas, chemical, and food processing.
Top product features:
- Three-Phase Design for Efficient Power Distribution
- Totally Enclosed Fan Cooled Motor Enclosure for Reliable Operation in Harsh Environments
- Ball Motor Bearings for Smooth and Quiet Operation
Top product applications:
- Industrial textile machinery
- Pumping stations and water treatment plants
- Manufacturing conveyor systems
General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 75 HP, Nameplate RPM 1782 rpm, Frame 365T, Voltage 230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 171.0/85.5 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Cast Iron, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 95.4 Percent, Continuous Duty, 1701-1800
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 38.70
- Package Width: 32.20
- Package Height: 20.40
- Package Weight: 1083.00
Product info last updated on March 3, 2026 4:42pm UTC
Category: Motors
