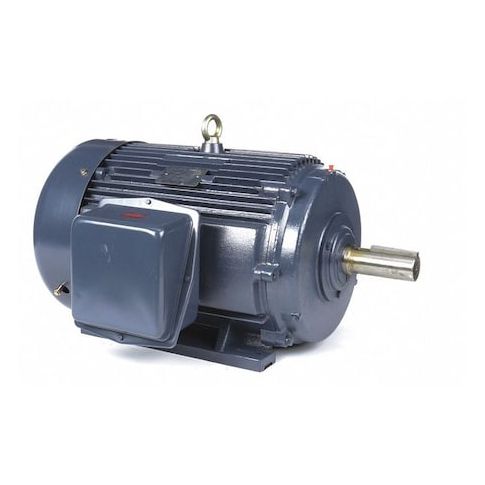

Three-Phase General Purpose Motor, 75 HP, 365T Frame, 575V AC Voltage, 1782 rpm Nameplate RPM MPN:365TTFCD6040
Three-Phase General Purpose Motor, 75 HP, 365T Frame, 575V AC Voltage, 1782 rpm Nameplate RPM
General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 75 HP, Nameplate RPM 1782 rpm, Frame 365T, Voltage 575V AC, 60 Hz Hz, Three Phase, Full Load Amps 68.5 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Cast Iron, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 95.4 Percent, Continuous Duty, 1701-1800, CSA Certified, UL Listed
Additional Information
- Country of Origin: MX
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 15 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 44.88
- Package Width: 39.25
- Package Height: 25.99
- Package Weight: 1087.00
Product info last updated on January 27, 2026 1:06pm UTC
Category: Motors
