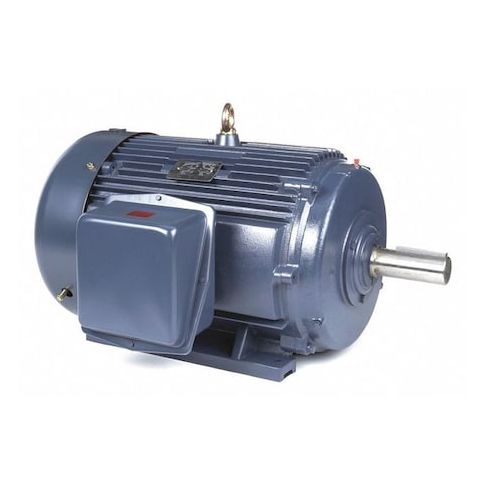

Three-Phase General Purpose Motor, 50 HP, 365T Frame, 230/460V AC Voltage, 1188 rpm Nameplate RPM MPN:365TTFCD6086
Three-Phase General Purpose Motor, 50 HP, 365T Frame, 230/460V AC Voltage, 1188 rpm Nameplate RPM
This 50 HP three-phase general purpose motor from Marathon is designed for heavy-duty applications requiring reliable and efficient power. With a totally enclosed fan-cooled motor enclosure and cast iron frame, it operates in a wide range of environments, including industrial and commercial settings. The motor's 94.1% nominal efficiency and 1.15 service factor ensure optimal performance and longevity. Suitable for continuous duty, it's ideal for use in conveyor systems, pumps, and other machinery that require a high level of power and reliability. Its compact design and rigid base mounting make it easy to integrate into existing systems.
Top product features:
- Three-Phase AC Voltage Capability
- Totally Enclosed Fan Cooled Motor Enclosure Design
- Ball Motor Bearings for Smooth Operation
Top product applications:
- Manufacturing plants
- Textile mills
- Paper mills
General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 50 HP, Nameplate RPM 1188 rpm, Frame 365T, Voltage 230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 121.0/60.5 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Cast Iron, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 94.1 Percent, Continuous Duty, 1,101-1,200
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 44.80
- Package Width: 39.20
- Package Height: 26.00
- Package Weight: 1025.00
Product info last updated on January 22, 2026 1:00pm UTC
Category: Motors
