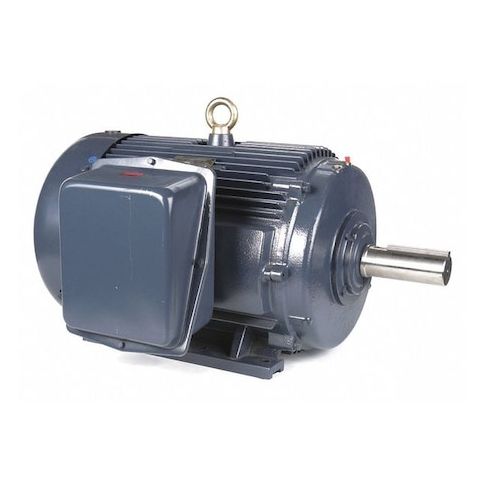

Three-Phase General Purpose Motor, 60 HP, 404T Frame, 230/460V AC Voltage, 1190 rpm Nameplate RPM MPN:404TTFCD6086
Three-Phase General Purpose Motor, 60 HP, 404T Frame, 230/460V AC Voltage, 1190 rpm Nameplate RPM
This 60 HP three-phase general purpose motor is designed for heavy-duty applications, including industrial manufacturing, oil and gas, and material handling. Its totally enclosed fan cooled motor enclosure keeps the motor running efficiently in harsh environments. With a high efficiency rating of 94.5% and a service factor of 1.15, this motor provides reliable performance and energy savings. Its rigid base motor mounting and cast iron frame ensure durability and stability. Suitable for continuous duty, this motor is ideal for applications that require high torque and power, such as pumps, fans, and conveyor systems.
Top product features:
- Three-Phase General Purpose Motor
- Totally Enclosed Fan Cooled Motor Enclosure Design
- Ball Motor Bearings
Top product applications:
- Pump applications in chemical plants and oil refineries
- Industrial conveyor systems
- Centrifugal compressors in natural gas processing plants
General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 60 HP, Nameplate RPM 1190 rpm, Frame 404T, Voltage 230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 143.0/71.5 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Cast Iron, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 94.5 Percent, Continuous Duty, 1,101-1,200
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 44.88
- Package Width: 39.25
- Package Height: 29.01
- Package Weight: 1340.00
Product info last updated on January 27, 2026 3:09pm UTC
Category: Motors
