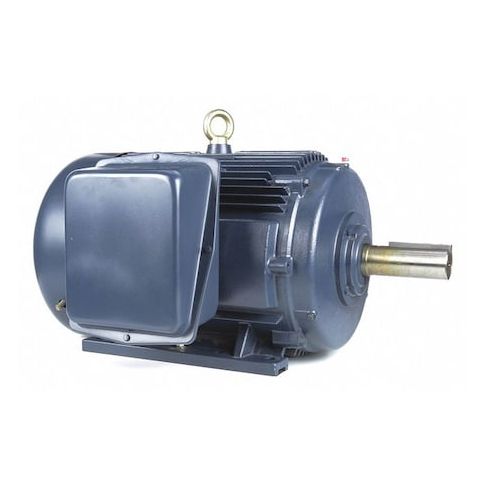

Three-Phase General Purpose Motor, 75 HP, 405T Frame, 230/460V AC Voltage, 1188 rpm Nameplate RPM MPN:405TTFCD6086
Three-Phase General Purpose Motor, 75 HP, 405T Frame, 230/460V AC Voltage, 1188 rpm Nameplate RPM
This 75 HP three-phase general purpose motor from Marathon is designed for heavy-duty applications requiring high efficiency and reliability. Its totally enclosed fan cooled design and cast iron frame ensure optimal performance in harsh environments. With a nameplate RPM of 1188 and a service factor of 1.15, this motor is ideal for continuous duty applications such as industrial processing, manufacturing, and material handling. Its high efficiency of 94.5% also makes it an eco-friendly choice. Suitable for use in a variety of industries, including oil and gas, food processing, and chemical manufacturing.
Top product features:
- Three-Phase AC Voltage Capability
- Totally Enclosed Fan Cooled Motor Enclosure Design
- Ball Motor Bearings for Smooth Operation
Top product applications:
- Pump Drive
- Conveyor System
- Power Generation
General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 75 HP, Nameplate RPM 1188 rpm, Frame 405T, Voltage 230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 178.0/89.0 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Cast Iron, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 94.5 Percent, Continuous Duty, 1,101-1,200
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 45.00
- Package Width: 39.00
- Package Height: 29.00
- Package Weight: 1436.00
Product info last updated on February 18, 2026 8:49am UTC
Category: Motors
