Three-Phase General Purpose Motor, 100 HP, 405TS Frame, 230/460V AC Voltage, 3575 rpm Nameplate RPM MPN:405TSTFCD6001
Three-Phase General Purpose Motor, 100 HP, 405TS Frame, 230/460V AC Voltage, 3575 rpm Nameplate RPM

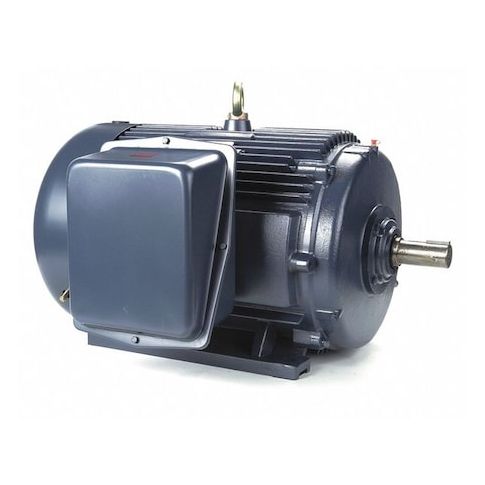

This 100 HP three-phase general purpose motor from Marathon is designed for continuous duty applications requiring high efficiency and reliability. With a nameplate RPM of 3575 and a nominal efficiency of 94.5%, it is ideal for use in industrial settings, such as manufacturing facilities, power plants, and water treatment plants. The motor's totally enclosed fan cooled design and rigid base mounting ensure quiet operation and stable performance, making it suitable for applications that require minimal vibration and noise. Its cast iron frame and ball bearings provide long-lasting durability and reduced maintenance needs.
Top product features:
- Three-Phase AC Voltage Capability: The motor operates on 230/460V AC voltage, allowing for flexible installation in various electrical configurations.
- Totally Enclosed Fan Cooled Motor Enclosure Design: The motor features a sealed enclosure with a built-in fan, providing reliable operation and protection from environmental contaminants.
- Continuous Duty Capability: The motor is designed for continuous operation, enabling long-term performance and minimizing downtime.
Top product applications:
- High-rise building HVAC systems
- Industrial textile manufacturing equipment
- Large-scale food processing machinery
General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 100 HP, Nameplate RPM 3575 rpm, Frame 405TS, Voltage 230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 222.0/111.0 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Cast Iron, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 94.5 Percent, Continuous Duty, 3001-3600
Additional Information
- Country of Origin: MX
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 15 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 44.88
- Package Width: 39.25
- Package Height: 29.01
- Package Weight: 1412.00
Product info last updated on January 27, 2026 3:43pm UTC
Category: Motors
