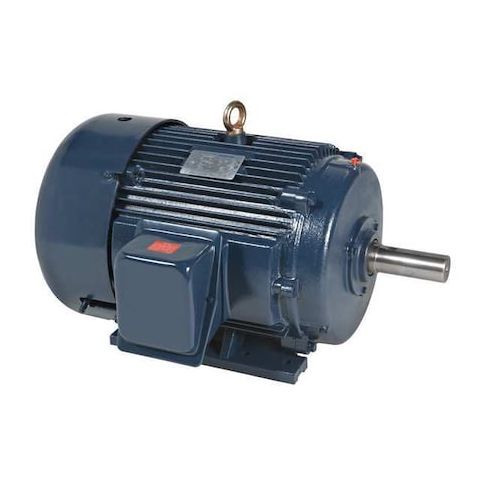

Three-Phase General Purpose Motor, 100 HP, 405TS Frame, 575V AC Voltage, 3575 rpm Nameplate RPM MPN:405TSTFCD6005
Three-Phase General Purpose Motor, 100 HP, 405TS Frame, 575V AC Voltage, 3575 rpm Nameplate RPM
This 100 HP three-phase general purpose motor from Marathon is designed for heavy-duty applications requiring high performance and reliability. Suitable for continuous duty, it features a totally enclosed fan-cooled design and rigid base mounting for stable operation. With a high efficiency rating of 94.5% and a service factor of 1.15, it minimizes energy consumption and extends motor lifespan. Ideal for use in industrial settings such as manufacturing facilities, power plants, and water treatment plants, this motor is CSA certified and UL listed for safety and performance. Its compact design and robust construction make it a reliable choice for demanding applications.
Top product features:
- Three-phase operation for efficient power distribution
- Totally enclosed fan cooled motor enclosure for reduced noise and increased durability
- Continuous duty operation for high-capacity applications
Top product applications:
- Pump drive motor
- Industrial conveyor system motor
- Power generation motor
General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 100 HP, Nameplate RPM 3575 rpm, Frame 405TS, Voltage 575V AC, 60 Hz Hz, Three Phase, Full Load Amps 89.0 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Cast Iron, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 94.5 Percent, Continuous Duty, 3001-3600, CSA Certified, UL Listed
Additional Information
- Country of Origin: MX
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 15 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 44.88
- Package Width: 39.25
- Package Height: 29.01
- Package Weight: 1409.00
Product info last updated on February 7, 2026 12:40pm UTC
Category: Motors
