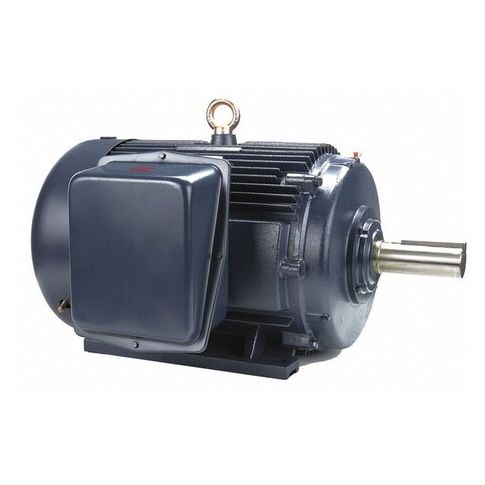

Three-Phase General Purpose Motor, 100 HP, 405T Frame, 230/460V AC Voltage, 1785 rpm Nameplate RPM MPN:405TTFCD6036
Three-Phase General Purpose Motor, 100 HP, 405T Frame, 230/460V AC Voltage, 1785 rpm Nameplate RPM
This 100 HP three-phase general purpose motor from Marathon is designed for heavy-duty applications requiring high efficiency and reliability. With a nameplate RPM of 1785 and a frame size of 405T, it is suitable for use in a variety of industries, including manufacturing, processing, and power generation. The motor's totally enclosed fan cooled design and rigid base mounting provide optimal cooling and stability, while its high service factor of 1.15 ensures it can handle demanding workloads. Its high efficiency of 95.4% and continuous duty rating make it an ideal choice for applications requiring long-term reliability and minimal maintenance.
Top product features:
- Three-phase operation allows for efficient power distribution and reduced energy consumption.
- Totally enclosed fan-cooled motor enclosure design provides a safe and reliable operating environment.
- Ball motor bearings ensure smooth and quiet operation, reducing wear and tear on the motor.
Top product applications:
- Industrial textile machinery
- Material handling equipment
- Pumps and compressors
General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 100 HP, Nameplate RPM 1785 rpm, Frame 405T, Voltage 230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 226.0/113.0 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Cast Iron, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 95.4 Percent, Continuous Duty, 1701-1800
Additional Information
- Country of Origin: MX
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 68 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 44.88
- Package Width: 39.25
- Package Height: 29.01
- Package Weight: 1458.00
Product info last updated on February 7, 2026 6:27pm UTC
Category: Motors
