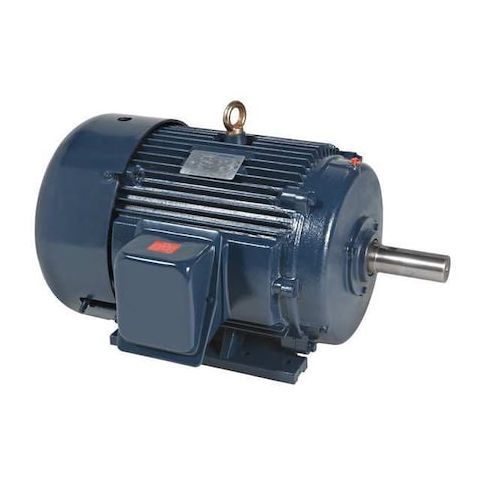

Three-Phase General Purpose Motor, 100 HP, 444T Frame, 230/460V AC Voltage, 1190 rpm Nameplate RPM MPN:444TTFCD6086
Three-Phase General Purpose Motor, 100 HP, 444T Frame, 230/460V AC Voltage, 1190 rpm Nameplate RPM
This 100 HP three-phase general purpose motor from Marathon is designed for heavy-duty applications requiring high efficiency and reliability. With a nameplate RPM of 1190 and a nominal efficiency of 95%, this motor delivers consistent performance in demanding environments. Suitable for use in industrial settings, such as manufacturing facilities and processing plants, this motor is ideal for applications like conveyor systems, pumps, and fans. Its totally enclosed fan cooled design and rigid base motor mounting ensure reliable operation and easy maintenance, making it a valuable asset for businesses requiring continuous duty operation.
Top product features:
- Three-phase operation allows for efficient power distribution and motor operation.
- Totally enclosed fan cooled motor enclosure design provides a safe and reliable operating environment.
- Ball motor bearings ensure smooth and quiet operation.
Top product applications:
- Pumps and water treatment plants
- Heavy industrial applications
- Manufacturing and production lines
General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 100 HP, Nameplate RPM 1190 rpm, Frame 444T, Voltage 230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 229.0/115.0 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Cast Iron, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 95 Percent, Continuous Duty, 1,101-1,200
Additional Information
- Country of Origin: MX
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 15 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 66.00
- Package Width: 46.00
- Package Height: 32.39
- Package Weight: 2060.00
Product info last updated on February 13, 2026 10:40pm UTC
Category: Motors
