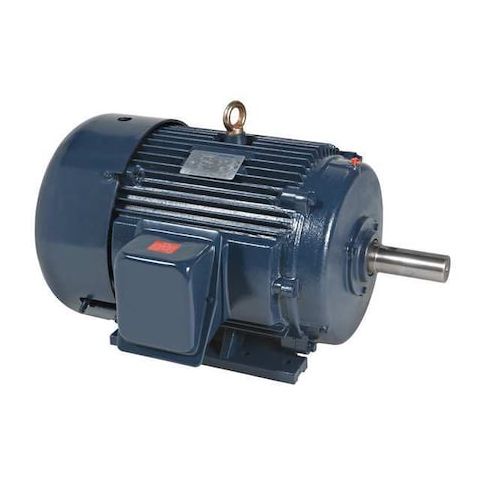

Three-Phase General Purpose Motor, 200 HP, 447T Frame, 460V AC Voltage, 1790 rpm Nameplate RPM MPN:447TTFCD6038
Three-Phase General Purpose Motor, 200 HP, 447T Frame, 460V AC Voltage, 1790 rpm Nameplate RPM
The Marathon 200 HP three-phase general purpose motor is a reliable and efficient solution for a wide range of industrial applications. Designed for continuous duty, this motor features a 447T frame, 460V AC voltage, and a nameplate RPM of 1790. With a service factor of 1.15 and a nominal efficiency of 96.5%, this motor provides consistent performance and reduced energy consumption. Suitable for use in factories, warehouses, and other industrial settings, this motor is ideal for applications such as conveyor systems, pumps, and fans. Its rugged design and cast iron frame ensure durability and long lifespan.
Top product features:
- Three-phase operation for efficient power distribution
- Totally enclosed fan cooled motor enclosure for reliable operation in harsh environments
- Continuous duty operation for sustained performance under heavy loads
Top product applications:
- Industrial manufacturing processes
- Pumps and compressors in oil and gas refineries
- Centrifuges and conveyor systems in food processing plants
General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 200 HP, Nameplate RPM 1790 rpm, Frame 447T, Voltage 460V AC, 60 Hz Hz, Three Phase, Full Load Amps 219.0 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Cast Iron, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 96.5 Percent, Continuous Duty, 1701-1800
Additional Information
- Country of Origin: MX
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 15 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 66.00
- Package Width: 46.00
- Package Height: 32.39
- Package Weight: 2461.00
Product info last updated on January 27, 2026 4:16pm UTC
Category: Motors
