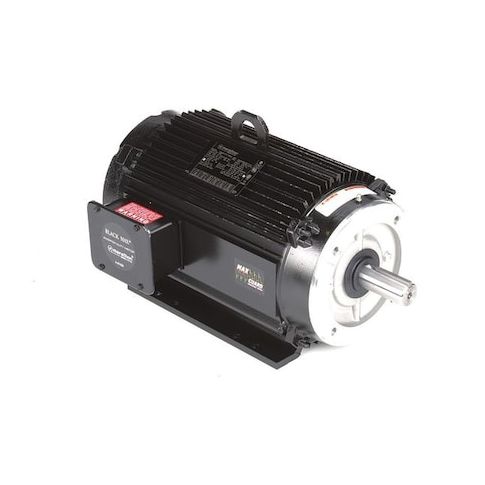

Vector Motor, 10 HP, 29.6 lb-ft, 575V MPN:215THTL7736

Vector Motor, Three Phase, Motor Design Three-Phase, 10 HP, Nameplate RPM 1,774, No. of Speeds 1, Voltage 575V AC, Full Load Amps 10.8 A, 215TC Frame, Torque 29.6 ft-lb, Max. Speed 1,800 RPM, Speed Range 1,000:1, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, 60 Hz Hz, Max. Operating Frequency 120 Hz, Motor Service Factor 1, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 104 Degrees F, Duty Cycle Continuous, NEMA Design A, Motor Shaft Rotation CW/CCW
