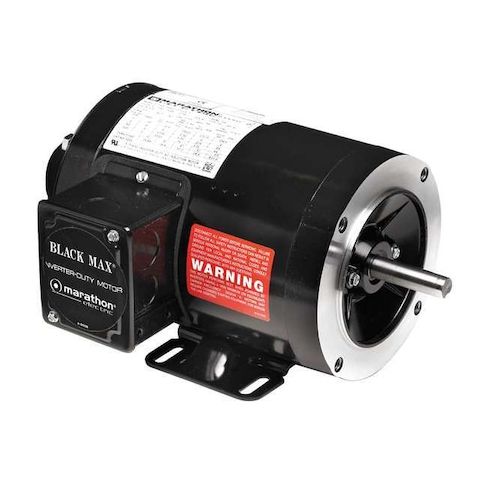

Vector Motor, 15 HP, 44.6 lb-ft, 575V MPN:254THTL5736
Vector Motor, 15 HP, 44.6 lb-ft, 575V
The Marathon Vector Motor is a high-performance solution for demanding industrial applications. With a powerful 15 HP output and 44.6 lb-ft of torque, this motor is designed to handle heavy loads and provide efficient operation. Suitable for use in environments with a maximum ambient temperature of 104°F, it's ideal for applications such as pumps, fans, and conveyor systems. The motor's continuous duty cycle and NEMA Design A rating ensure reliable performance. Its compact design and ease of installation make it a convenient choice for a wide range of industries, including manufacturing, oil and gas, and food processing.
Top product features:
- Three Phase Design
- NEMA Design A
- Continuous Duty Cycle
Top product applications:
- Pumping systems for industrial applications
- High-speed material handling equipment
- Large-scale manufacturing machinery
Vector Motor, Three Phase, Motor Design 3-Phase, 15 HP, Nameplate RPM 1,765, No. of Speeds 1, Voltage 575V AC, Full Load Amps 16 A, 254TC Frame, Torque 44.6 ft-lb, Max. Speed 1,800 RPM, Speed Range 1,000:1, Usable @ 208V No, Usable @ 200V No, 60 Hz Hz, Max. Operating Frequency 120 Hz, Motor Service Factor 1, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 104 Degrees F, Duty Cycle Continuous, NEMA Design A, Motor Shaft Rotation CW/CCW
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 15 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 30.75
- Package Width: 21.71
- Package Height: 18.00
- Package Weight: 260.00
Product info last updated on February 19, 2026 9:21am UTC
Category: Motors
