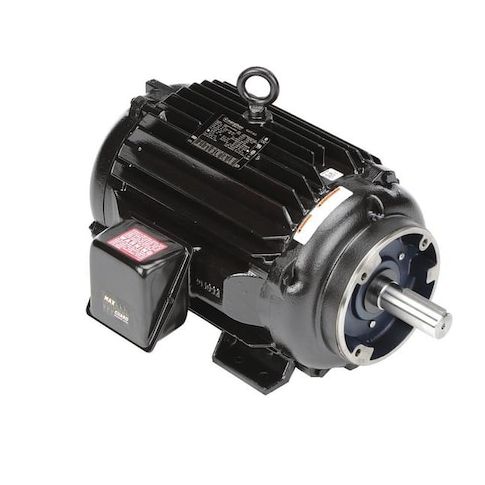

Vector Motor, 20 HP, 59.5 lb-ft, 575V MPN:256THTNA7036
Vector Motor, 20 HP, 59.5 lb-ft, 575V
The Marathon Vector Motor is a high-performance solution for demanding industrial applications. With a 20 HP, 59.5 lb-ft output, it delivers efficient and reliable operation in a wide range of industries. Suitable for applications that require continuous operation, this motor features a 1,000:1 speed range and a maximum operating frequency of 120 Hz. Its NEMA Design A rating ensures a high level of efficiency and reliability, making it an ideal choice for use in demanding environments. Its compact design and robust construction make it perfect for applications in the manufacturing, oil and gas, and food processing industries.
Top product features:
- Three-phase design
- Continuous duty cycle
- Torque output of 59.5 ft-lb
Top product applications:
- Pumps
- Conveyors
- Fans
Vector Motor, Three Phase, Motor Design Three-Phase, 20 HP, Nameplate RPM 1,770, No. of Speeds 1, Voltage 575V AC, Full Load Amps 20.8 A, 256TC Frame, Torque 59.5 ft-lb, Max. Speed 1,800 RPM, Speed Range 1,000:1, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, 60 Hz Hz, Max. Operating Frequency 120 Hz, Motor Service Factor 1, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 104 Degrees F, Duty Cycle Continuous, NEMA Design A, Motor Shaft Rotation CW/CCW
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 15 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 30.75
- Package Width: 21.71
- Package Height: 18.00
- Package Weight: 300.00
Product info last updated on February 23, 2026 10:24am UTC
Category: Motors
