3-Phase Belt Drive Motor, 3 1/3, 7 1/2 HP, 254T Frame, 200-230V AC Voltage, No. of Speeds: 2 MPN:254TTDX7278
3-Phase Belt Drive Motor, 3 1/3, 7 1/2 HP, 254T Frame, 200-230V AC Voltage, No. of Speeds: 2

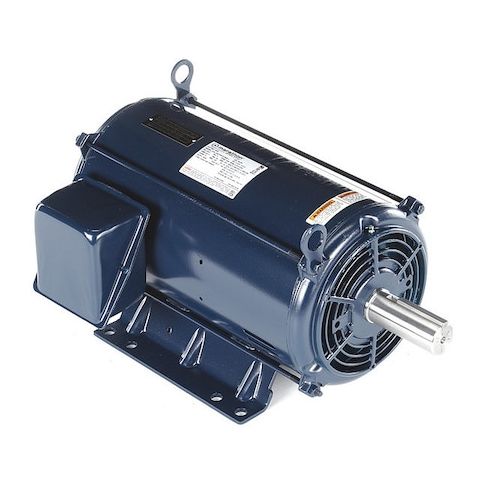

This 3-Phase Belt Drive Motor from Marathon is a reliable and efficient solution for various industrial applications. With a 3 1/3 to 7 1/2 HP range, it can handle demanding tasks such as powering fans, blowers, and other machinery. The motor's two-speed design allows for flexibility in operations, while its 200-230V AC voltage and 254T frame ensure compatibility with a range of systems. Suitable for continuous duty cycles and operating temperatures up to 40 degrees C, this motor is ideal for use in manufacturing, HVAC, and other industries where high-performance and reliability are crucial.
Top product features:
- Three-Phase Belt Drive Motor design provides a reliable and efficient power transmission mechanism.
- The motor has a 2-speed capability, allowing for adjustable torque and speed to match different applications.
- The motor features an open drip-proof enclosure design, protecting internal components from dust and water splashes.
Top product applications:
- Air Handling Units
- Industrial Conveyors
- Centrifugal Pumps
Fan and Blower Motor, Three Phase, Motor Design Three-Phase, 3 1/3 hp, 7 1/2 hp HP, Nameplate RPM 1,770/1,180 RPM, No. of Speeds 2, Voltage 200-230V AC, 20.8-18.4 A Full Load Amps, 254T Frame, 60 Hz Hz, Usable @ 208V Usable at 208V, Usable @ 200V Usable at 200V, Motor Service Factor 1.15, Motor Thermal Protection None, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Drip Proof, Motor Mounting Type Rigid Base
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 15 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 22.50
- Package Width: 16.81
- Package Height: 14.00
- Package Weight: 175.00
