3-Phase Belt Drive Motor, 10, 4 7/16 HP, 256T Frame, 460V AC Voltage, 1, 760/1, 175 Nameplate RPM MPN:256TTDX7264
3-Phase Belt Drive Motor, 10, 4 7/16 HP, 256T Frame, 460V AC Voltage, 1, 760/1, 175 Nameplate RPM

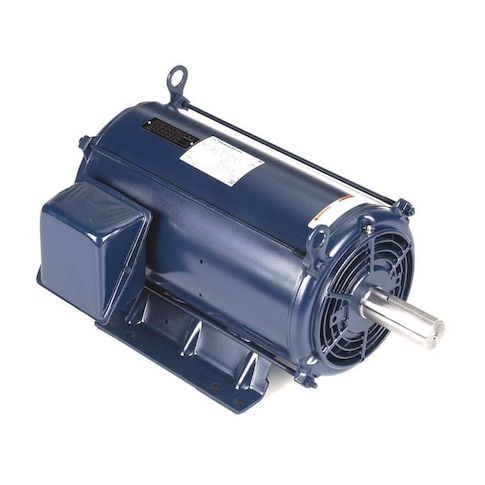

This 10 HP 3-phase belt drive motor from Marathon is a reliable and efficient solution for a variety of applications. Suitable for use in industrial settings, it offers a continuous duty cycle and can operate at a maximum ambient temperature of 40 degrees C. With a 256T frame and a 460V AC voltage rating, it's perfect for fans and blowers that require a high level of power. The motor's open drip-proof enclosure and rigid base design provide excellent durability and ease of installation. Ideal for use in factories, warehouses, and other industrial environments, this motor delivers reliable performance and long-lasting operation.
Top product features:
- Three-phase belt drive motor design
- Provides 10 horsepower output
- Operates at 1,760/1,175 nameplate RPM
Top product applications:
- Air Handling Units
- HVAC Systems
- Manufacturing Processes
Fan and Blower Motor, Three Phase, Motor Design Three-Phase, 10 hp, 4 4/9 hp HP, Nameplate RPM 1,760/1,175 RPM, No. of Speeds 2, Voltage 460V AC, 12 A Full Load Amps, 256T Frame, 60 Hz Hz, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Motor Service Factor 1.15, Motor Thermal Protection None, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Drip Proof, Motor Mounting Type Rigid Base
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 22.50
- Package Width: 16.80
- Package Height: 14.00
- Package Weight: 214.00
Product info last updated on March 10, 2026 10:36pm UTC
Category: Motors
