Definite Purpose Motor, Three Phase, 15, 3 3/4 HP, 1, 765/875 Nameplate RPM, 460V AC, 256T Frame MPN:256TTFNA7250
Definite Purpose Motor, Three Phase, 15, 3 3/4 HP, 1, 765/875 Nameplate RPM, 460V AC, 256T Frame

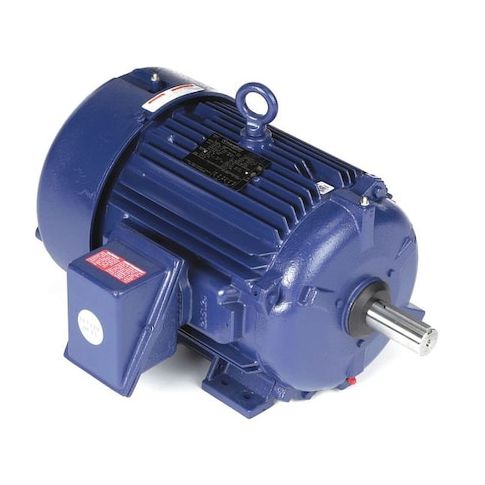

This three-phase, totally enclosed fan-cooled motor from Marathon is designed for use in cooling towers, providing reliable and efficient operation in harsh environments. With a 15 hp rating and 1,765/875 nameplate RPM, it delivers consistent performance in a wide range of applications. The motor's ball bearings and rigid base mounting ensure smooth operation and long lifespan. Its compact design and cast iron frame make it ideal for installation in tight spaces. Suitable for use in industrial settings, the motor is built to withstand high temperatures and demanding conditions, making it a reliable choice for cooling tower applications.
Top product features:
- Totally Enclosed Fan Cooled for improved reliability and reduced maintenance
- Ball bearings for smooth and quiet operation
- CW/CCW Motor Shaft Rotation for reversible operation and increased versatility
Top product applications:
- Cooling towers
- Industrial air conditioning systems
- Large commercial buildings
Cooling Tower Motor, Three-Phase, Totally Enclosed Fan Cooled, 15 hp, 3 3/4 hp HP, 1,765/875 RPM Nameplate RPM, 256T Frame, CW/CCW Motor Shaft Rotation, 460V AC Voltage, 18.0/6.0 A Full Load Amps, Three Phase, 60 Hz Hz, Rigid Base Motor Mounting Type, Motor Mounting Position Horizontal/Vertical Shaft Up, Motor Bearings Ball, Motor Frame Material Cast Iron, None Motor Thermal Protection, 1.15 Motor Service Factor, Ambient Temperature 40 Degrees C, Shaft Dia. 1 5/8 in, Shaft Length 4 in
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 31.25
- Package Width: 22.25
- Package Height: 18.00
- Package Weight: 381.00
Product info last updated on February 10, 2026 7:33pm UTC
Category: Motors
