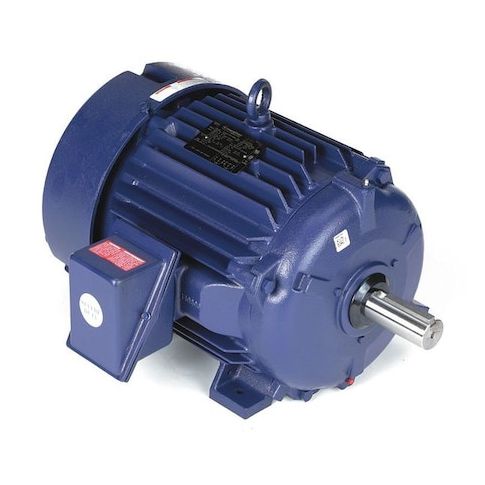

Definite Purpose Motor, Three Phase, 20, 5 HP, 1, 775/880 Nameplate RPM, 460V AC, 284T Frame MPN:284TTFNA7240
Definite Purpose Motor, Three Phase, 20, 5 HP, 1, 775/880 Nameplate RPM, 460V AC, 284T Frame
Cooling Tower Motor, Three-Phase, Totally Enclosed Fan Cooled, 20 hp, 5 hp HP, 1,775/880 RPM Nameplate RPM, 284T Frame, CW/CCW Motor Shaft Rotation, 460V AC Voltage, 24.0/8.5 A Full Load Amps, Three Phase, 60 Hz Hz, Rigid Base Motor Mounting Type, Motor Mounting Position Horizontal/Vertical Shaft Up, Motor Bearings Ball, Motor Frame Material Cast Iron, None Motor Thermal Protection, 1.15 Motor Service Factor, Ambient Temperature 40 Degrees C, Shaft Dia. 1 7/8 in, Shaft Length 4 7/8 in
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 35.00
- Package Width: 26.00
- Package Height: 24.51
- Package Weight: 489.00
Product info last updated on February 14, 2026 7:59am UTC
Category: Motors
