Definite Purpose Motor, Three Phase, 30, 7 1/2 HP, 1, 785/888 Nameplate RPM, 460V AC, 324T Frame MPN:324TTFS7290
Definite Purpose Motor, Three Phase, 30, 7 1/2 HP, 1, 785/888 Nameplate RPM, 460V AC, 324T Frame

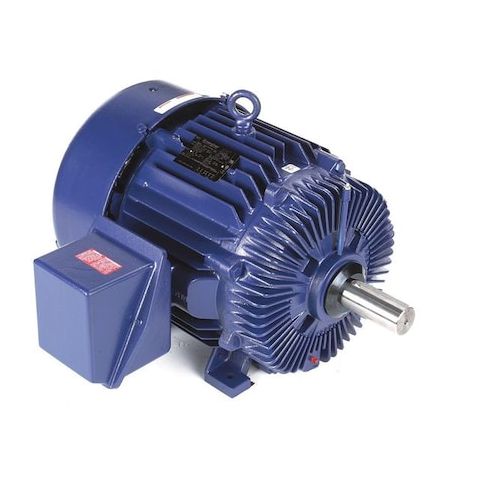

This three-phase, 30 HP, 7.5 HP, totally enclosed fan-cooled motor from Marathon is designed for use in cooling tower applications. With a 460V AC voltage and 35.0/11.2 A full load amps, it provides reliable power to keep your cooling tower running efficiently. The motor's rigid base mounting and horizontal/vertical shaft orientation make it easy to install in a variety of settings. Its ball bearings and cast iron frame ensure durability and long lifespan. Ideal for use in industrial and commercial settings, this motor is a cost-effective solution for cooling tower applications, providing a reliable and efficient operation.
Top product features:
- Three-Phase Operation
- Totally Enclosed Fan Cooled Design
- Ball Bearings
Top product applications:
- Cooling tower fan motor
- Industrial process cooling systems
- Air handling unit motor
Cooling Tower Motor, Three-Phase, Totally Enclosed Fan Cooled, 30 hp, 7 1/2 hp HP, 1,785/888 RPM Nameplate RPM, 324T Frame, CW/CCW Motor Shaft Rotation, 460V AC Voltage, 35.0/11.2 A Full Load Amps, Three Phase, 60 Hz Hz, Rigid Base Motor Mounting Type, Motor Mounting Position Horizontal/Vertical Shaft Up, Motor Bearings Ball, Motor Frame Material Cast Iron, None Motor Thermal Protection, 1.15 Motor Service Factor, Ambient Temperature 40 Degrees C, Shaft Dia. 2 1/8 in, Shaft Length 5 1/2 in
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 38.00
- Package Width: 32.00
- Package Height: 24.40
- Package Weight: 668.00
Product info last updated on January 17, 2026 8:21pm UTC
Category: Motors
