General Purpose Farm Duty Motor, Capacitor-Start/Run, 7 1/2 HP, 230V AC, 1, 750 Nameplate RPM MPN:215TBFW7028
General Purpose Farm Duty Motor, Capacitor-Start/Run, 7 1/2 HP, 230V AC, 1, 750 Nameplate RPM

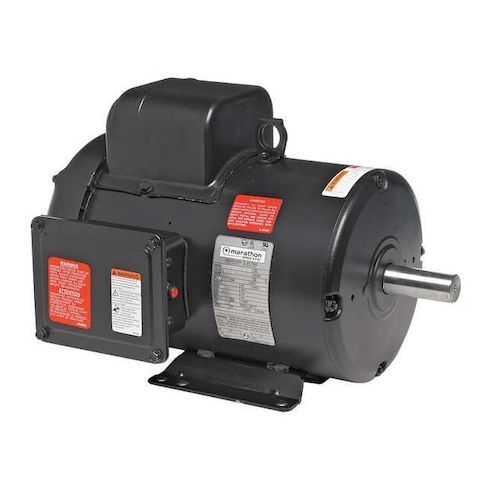

This 7 1/2 HP General Purpose Farm Duty Motor from Marathon is designed for reliable performance in agricultural applications. With a capacitor-start/run design, it provides efficient operation and long motor life. Suitable for use in a variety of settings, including irrigation systems, pumps, and grain handling equipment, this motor can withstand the demands of continuous duty cycles. Its totally enclosed fan-cooled design ensures minimal maintenance and reduced downtime. Built to last with a motor service factor of 1.15 and a maximum ambient temperature of 40 degrees C, this motor is an ideal choice for farm owners and operators seeking a dependable and efficient solution.
Top product features:
- Totally Enclosed Fan Cooled design provides a safe and efficient cooling system for the motor.
- Manual motor thermal protection allows for user monitoring and control of motor temperature.
- Single Phase, Capacitor-Start/Run motor design enables efficient and reliable operation in a variety of applications.
Top product applications:
- Pump applications
- Well pump applications
- Sump pump applications
Farm Duty Motor, Single Phase, Motor Design Capacitor-Start/Run, 7 1/2 hp HP, Nameplate RPM 1,750 RPM, No. of Speeds 1, Voltage 230V AC, Full Load Amps 30.5 A, 215TZ Frame, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, 60 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection Manual, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Mounting Type Rigid Base
Additional Information
- Country of Origin: MX
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 15 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 30.50
- Package Width: 16.81
- Package Height: 14.00
- Package Weight: 155.00
Product info last updated on February 25, 2026 7:27am UTC
Category: Motors
