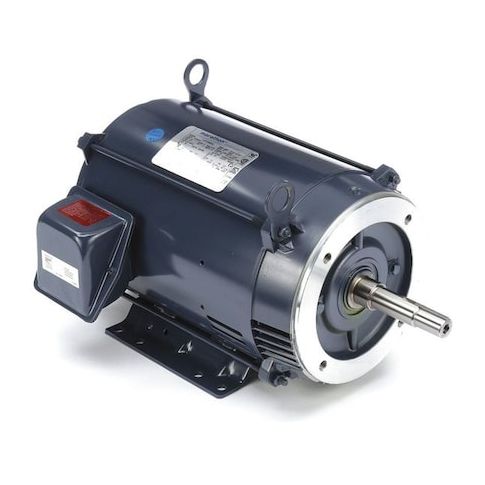

Close-Coupled Pump Motor, 3-Phase, 10 HP MPN:215TTDBD6032
Close-Coupled Pump Motor, 3-Phase, 10 HP
This 10 HP, 3-phase close-coupled pump motor from Marathon is designed for continuous duty cycles, making it ideal for applications in water treatment, chemical processing, and wastewater management. Its inverter-rated design provides 10:1 variable torque and 2:1 constant torque capabilities, allowing for efficient operation in a variety of conditions. The motor's ball bearings ensure smooth operation and long lifespan, while its compact design makes it easy to integrate into existing systems. With a maximum ambient temperature of 40 degrees C, this motor is suitable for use in a range of environments, from industrial facilities to outdoor applications.
Top product features:
- Close-coupled design for efficient heat dissipation
- Three-phase motor for high power and efficiency
- Ball bearings for reduced maintenance and extended motor life
Top product applications:
- Pump
- Inverter Rated
- Motor Application
Close-Coupled Pump Motor, Body Dia. 9.5 in, Bolt Circle Dia. 7 1/4 in, CC Number CC003A, Conduit Box Location Exterior, Conduit Box Position F1, F2, Duty Cycle Continuous, Frame 215JM, Hz 60 Hz, Full Load Amps 25.4/12.7, Height 11 in, HP 10, Ins. Class F, Inverter Rated Yes, Inverter Rating 10:1 Variable Torque, 2:1 Constant Torque, Length Less Shaft 15 in, Max. Ambient Temp. 40 Degrees C, Motor Application Pump, Motor Bearings Ball, Motor Design 3-Phase
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 22.50
- Package Width: 16.81
- Package Height: 14.00
- Package Weight: 155.00
Product info last updated on February 7, 2026 5:38pm UTC
Category: Motors
