Three-Phase General Purpose Motor, 7 1/2 HP, 213TC Frame, 230/460V AC Voltage, 1, 770 Nameplate RPM MPN:213TTFBD6029
Three-Phase General Purpose Motor, 7 1/2 HP, 213TC Frame, 230/460V AC Voltage, 1, 770 Nameplate RPM

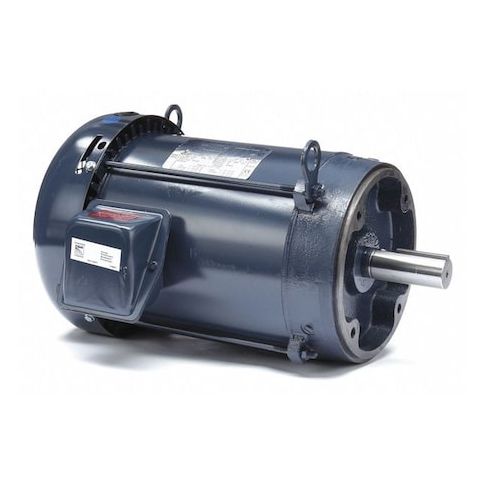

The Marathon 7 1/2 HP three-phase general purpose motor is a reliable and efficient solution for a wide range of industrial applications. Suitable for continuous duty, this motor features a totally enclosed fan-cooled design and is rated for 230/460V AC voltage. With a nameplate RPM of 1,770 and a service factor of 1.15, this motor provides a high level of performance and efficiency. Ideal for use in factories, warehouses, and other industrial settings, this motor is also recognized by CE, CSA, and UL for its safety and quality. Its compact design and robust construction make it a great choice for many applications.
Top product features:
- Three-Phase Design
- Totally Enclosed Fan Cooled Motor Enclosure Design
- Ball Motor Bearings
Top product applications:
- Pump applications such as water, wastewater, and chemical processes
- Fans and blowers for industrial ventilation and air circulation
- Conveyors and material handling equipment for manufacturing and logistics
General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 7 1/2 HP, Nameplate RPM 1,770, Frame 213TC, Voltage 230/460V AC, 60/50 Hz Hz, Three Phase, Full Load Amps 19.0/9.5 A, C-Face Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 91.7 Percent, Continuous Duty, 1701-1800, CE, CSA, UL Recognized
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 23.00
- Package Width: 17.00
- Package Height: 15.00
- Package Weight: 154.00
Product info last updated on March 11, 2026 8:32am UTC
Category: Motors
