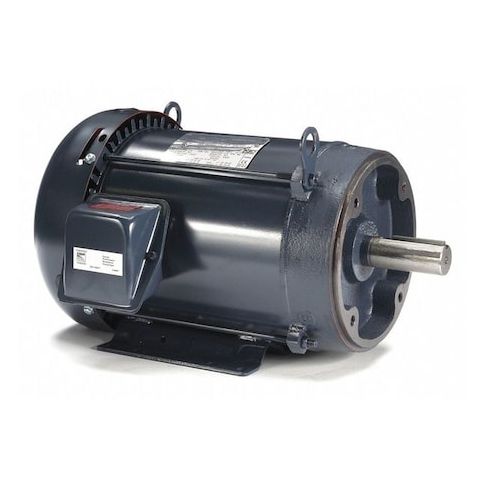

Three-Phase General Purpose Motor, 3 HP, 213TC Frame, 230/460V AC Voltage, 1185 rpm Nameplate RPM MPN:213TTFBD6078
Three-Phase General Purpose Motor, 3 HP, 213TC Frame, 230/460V AC Voltage, 1185 rpm Nameplate RPM
This high-performance Three-Phase General Purpose Motor is designed for demanding applications that require reliable and efficient operation. With a 3 HP rating and 1185 rpm nameplate speed, it's perfect for use in industrial settings, such as manufacturing, processing, and material handling. The motor's totally enclosed fan cooled design ensures optimal performance in a variety of environments, while its steel frame and ball bearings provide durability and long lifespan. Ideal for continuous duty applications, this motor offers a high level of efficiency, with a nominal efficiency of 89.5%, making it a cost-effective solution for businesses that require consistent operation.
Top product features:
- Three-Phase General Purpose Motor, Totally Enclosed Fan Cooled Motor Enclosure Design
- Ball Motor Bearings
- CW/CCW Motor Shaft Rotation
Top product applications:
- Industrial conveyor systems
- Pump applications in chemical processing plants
- Manufacturing equipment installations
General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 3 HP, Nameplate RPM 1185 rpm, Frame 213TC, Voltage 230/460V AC, 60/50 Hz Hz, Three Phase, Full Load Amps 8.6/4.3 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 89.5 Percent, Continuous Duty, 1,101-1,200
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 23.00
- Package Width: 17.00
- Package Height: 15.00
- Package Weight: 164.00
Product info last updated on February 3, 2026 8:02pm UTC
Category: Motors
