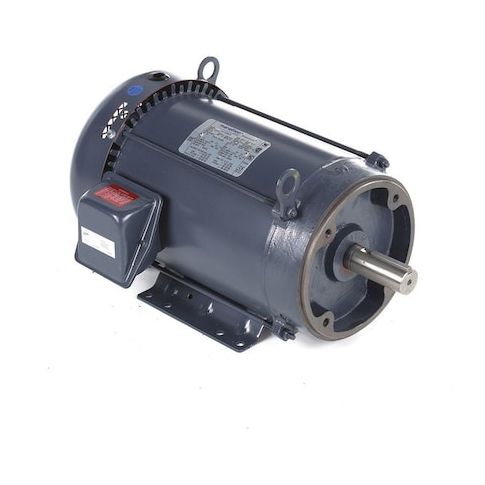

Three-Phase General Purpose Motor, 5 HP, 215TC Frame, 230/460V AC Voltage, 1180 rpm Nameplate RPM MPN:215TTFBD6078
Three-Phase General Purpose Motor, 5 HP, 215TC Frame, 230/460V AC Voltage, 1180 rpm Nameplate RPM
This 5 HP, three-phase general purpose motor from Marathon is designed for a wide range of industrial applications, including manufacturing, oil and gas, and food processing. Its totally enclosed fan cooled motor enclosure provides reliable operation in harsh environments, while its rigid base and C-face motor mounting type ensure secure installation. With a nameplate RPM of 1180 and a maximum ambient temperature of 40 degrees C, this motor can handle demanding tasks with ease. Its high efficiency and continuous duty rating make it an ideal choice for applications that require consistent performance and minimal downtime.
Top product features:
- Three-Phase AC Voltage Capability
- Totally Enclosed Fan Cooled Motor Enclosure Design
- Ball Motor Bearings for Smooth and Quiet Operation
Top product applications:
- Pump applications
- Conveyor systems
- Industrial machinery
General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 5 HP, Nameplate RPM 1180 rpm, Frame 215TC, Voltage 230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 13.6/6.8 A, Rigid Base, C-Face Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 91.7 Percent, Continuous Duty, 1,101-1,200
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 22.00
- Package Width: 17.50
- Package Height: 19.00
- Package Weight: 174.00
Product info last updated on February 3, 2026 10:21pm UTC
Category: Motors
