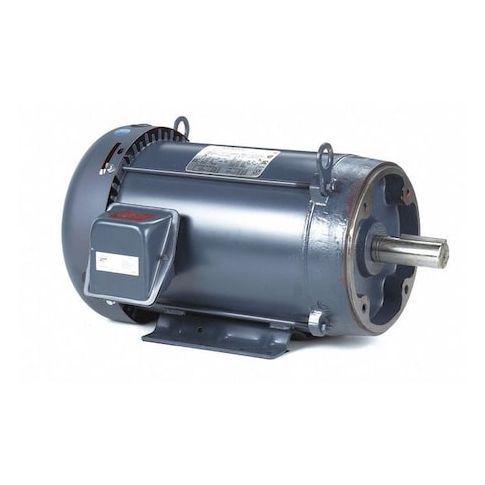

Three-Phase General Purpose Motor, 10 HP, 215TC Frame, 230/460V AC Voltage, 3518 rpm Nameplate RPM MPN:215TTFBD6003
Three-Phase General Purpose Motor, 10 HP, 215TC Frame, 230/460V AC Voltage, 3518 rpm Nameplate RPM
This 10 HP, three-phase general purpose motor from Marathon is a reliable and efficient solution for a variety of applications. Designed for continuous duty, it features a totally enclosed fan cooled motor enclosure and rigid base for added stability. With a nameplate RPM of 3518, it delivers high performance in a compact 215TC frame. Suitable for use in industrial settings, such as manufacturing, processing, and material handling, this motor offers improved productivity and reduced energy costs. Its durable construction and high efficiency make it an ideal choice for applications that require consistent and reliable operation.
Top product features:
- Three-phase operation allows for efficient power distribution and reduced energy consumption.
- Totally enclosed fan cooled motor design provides reliable operation in a variety of environments.
- Ball bearings ensure smooth and quiet motor operation, reducing wear and tear on the motor.
Top product applications:
- Pumps and Compressors
- Fans and Blowers
- Conveyors and Material Handling Equipment
General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 10 HP, Nameplate RPM 3518 rpm, Frame 215TC, Voltage 230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 23.6/11.8 A, Rigid Base, C-Face Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 92.4 Percent, Continuous Duty, 3001-3600
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 22.50
- Package Width: 16.80
- Package Height: 14.00
- Package Weight: 172.00
