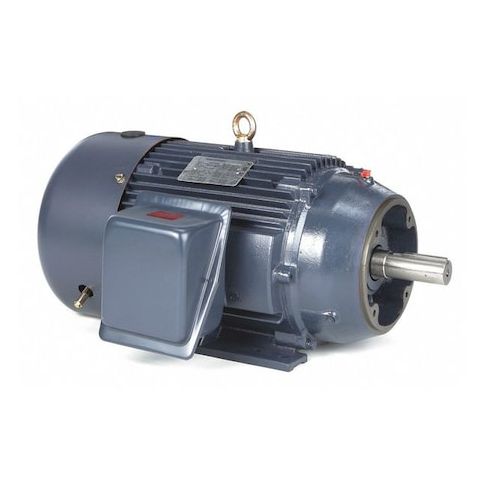

Three-Phase General Purpose Motor, 20 HP, 256TC Frame, 230/460V AC Voltage, 3, 540 Nameplate RPM MPN:256TTFCD6003
Three-Phase General Purpose Motor, 20 HP, 256TC Frame, 230/460V AC Voltage, 3, 540 Nameplate RPM
This 20 HP three-phase general purpose motor from Marathon is designed for heavy-duty applications that require continuous duty. With a nameplate RPM of 3,540 and a high efficiency rating of 91.7%, it provides reliable and energy-efficient performance. The totally enclosed fan cooled design and cast iron frame ensure durability and protection from harsh environments. Suitable for use in various industries such as manufacturing, oil and gas, and food processing, this motor is ideal for applications like pumps, fans, and conveyors. Its CSA, UL, and CE listings ensure compliance with international safety standards, making it a reliable choice for demanding operations.
Top product features:
- Three-phase operation allows for efficient power distribution and reduced energy consumption.
- Totally enclosed fan cooled motor enclosure design protects against dust and moisture.
- Ball bearings provide smooth and reliable motor operation.
Top product applications:
- Industrial Pumping Systems
- Conveyor Belt Drives
- Centrifugal Pumps
General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 20 HP, Nameplate RPM 3,540, Frame 256TC, Voltage 230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 47.5/23.7 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Cast Iron, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 91.7 Percent, Continuous Duty, 3001-3600, CE, CSA, UL Listed
Additional Information
- Country of Origin: MX
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 15 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 27.00
- Package Width: 20.50
- Package Height: 18.00
- Package Weight: 364.00
