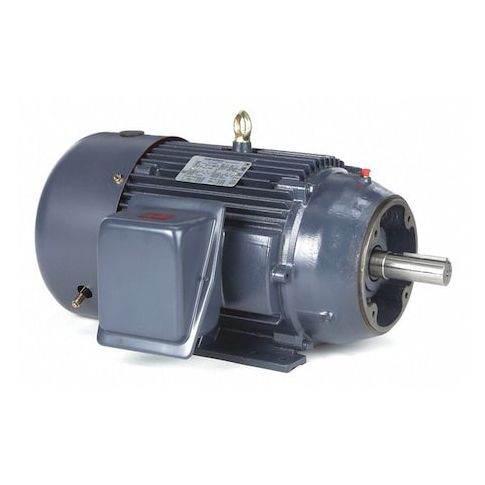

Three-Phase General Purpose Motor, 20 HP, 256TC Frame, 230/460V AC Voltage, 1, 768 Nameplate RPM MPN:256TTFCD6028
Three-Phase General Purpose Motor, 20 HP, 256TC Frame, 230/460V AC Voltage, 1, 768 Nameplate RPM
This 20 HP three-phase general purpose motor from Marathon is designed for heavy-duty applications that require reliable performance and efficient operation. With a nameplate RPM of 1,768 and a high efficiency rating of 94.1%, this motor is ideal for use in continuous duty applications such as manufacturing, processing, and material handling. Its totally enclosed fan cooled design and rigid base mounting ensure safe and reliable operation in a variety of environments. The motor's CE, CSA, and UL listings ensure compliance with international safety standards, making it a great choice for use in a range of industries and applications.
Top product features:
- Totally Enclosed Fan Cooled Motor Enclosure Design
- Ball Motor Bearings
- CW/CCW Motor Shaft Rotation
Top product applications:
- Industrial Pump Applications
- Food Processing Equipment
- Oil and Gas Industry
General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 20 HP, Nameplate RPM 1,768, Frame 256TC, Voltage 230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 48.5/24.2 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Cast Iron, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 94.1 Percent, Continuous Duty, 1701-1800, CE, CSA, UL Listed
Additional Information
- Country of Origin: MX
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 15 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 30.00
- Package Width: 24.50
- Package Height: 24.50
- Package Weight: 336.00
Product info last updated on February 11, 2026 1:52pm UTC
Category: Motors
