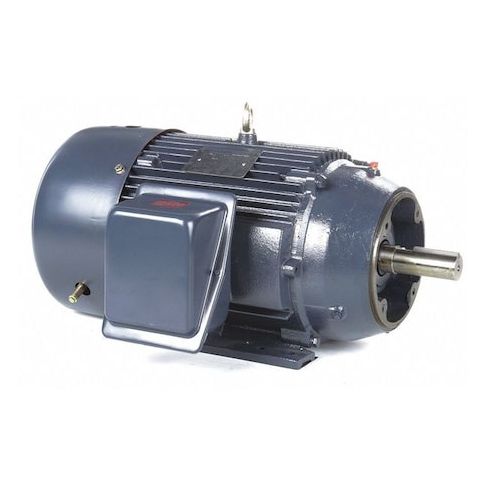

Three-Phase General Purpose Motor, 10 HP, 256TC Frame, 230/460V AC Voltage, 1180 rpm Nameplate RPM MPN:256TTFCD6078
Three-Phase General Purpose Motor, 10 HP, 256TC Frame, 230/460V AC Voltage, 1180 rpm Nameplate RPM
This 10 HP three-phase general purpose motor from Marathon is designed for a wide range of applications requiring high efficiency and reliability. With a nameplate RPM of 1180 and a nominal efficiency of 94.1%, this motor is ideal for use in industrial settings where continuous duty is required. The totally enclosed fan cooled motor enclosure design and cast iron frame ensure durability and longevity, while the rigid base motor mounting type provides stability and ease of installation. Suitable for use in manufacturing, processing, and other industries, this motor offers a reliable and efficient solution for your power needs.
Top product features:
- Three-phase design for efficient power distribution
- Totally enclosed fan-cooled motor enclosure for reliable cooling and reduced noise
- Ball motor bearings for smooth and durable operation
Top product applications:
- Pumps and other fluid-handling equipment
- Fans and blowers in industrial settings
- Conveyor systems and other material-handling equipment
General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 10 HP, Nameplate RPM 1180 rpm, Frame 256TC, Voltage 230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 25.8/12.9 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Cast Iron, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 94.1 Percent, Continuous Duty, 1,101-1,200
Additional Information
- Country of Origin: MX
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 15 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 27.00
- Package Width: 20.50
- Package Height: 18.00
- Package Weight: 345.00
Product info last updated on April 22, 2026 7:14pm UTC
Category: Motors
