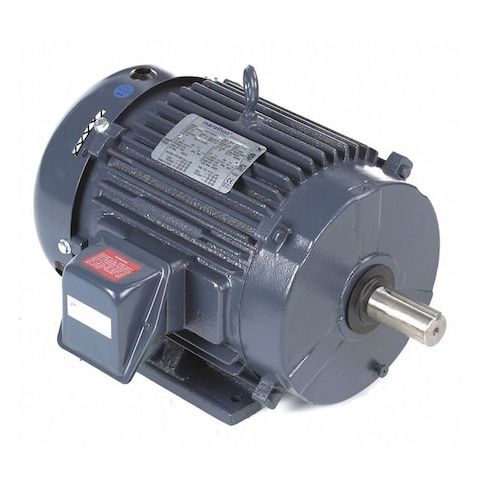

Three-Phase General Purpose Motor, 10 HP, 215T Frame, 230/460V AC Voltage, 3518 rpm Nameplate RPM MPN:215TTFCD6001
Three-Phase General Purpose Motor, 10 HP, 215T Frame, 230/460V AC Voltage, 3518 rpm Nameplate RPM
This 10 HP three-phase general purpose motor from Marathon is designed for heavy-duty applications. With a totally enclosed fan-cooled motor enclosure and rigid base mounting, it provides reliable operation in harsh environments. The motor's high efficiency and continuous duty rating make it suitable for industrial processes, manufacturing facilities, and commercial settings. Its cast iron frame and ball bearings ensure durability and long lifespan. With a service factor of 1.15 and a maximum ambient temperature of 40°C, this motor can handle demanding tasks and maintain optimal performance in a wide range of conditions.
Top product features:
- Totally Enclosed Fan Cooled Motor Enclosure Design
- Continuous Duty Operation
- Ball Motor Bearings
Top product applications:
- Pumps and Pumps Accessories
- Conveyor Systems
- Industrial Fans and Blowers
General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 10 HP, Nameplate RPM 3518 rpm, Frame 215T, Voltage 230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 23.6/11.8 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Cast Iron, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 92.4 Percent, Continuous Duty, 3001-3600
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 18.50
- Package Width: 26.90
- Package Height: 19.10
- Package Weight: 200.00
Product info last updated on February 3, 2026 1:42pm UTC
Category: Motors
