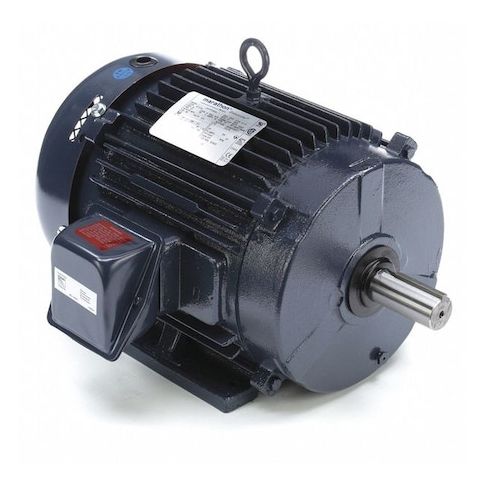

Three-Phase General Purpose Motor, 10 HP, 215T Frame, 575V AC Voltage, 1762 rpm Nameplate RPM MPN:215TTFCD6030
Three-Phase General Purpose Motor, 10 HP, 215T Frame, 575V AC Voltage, 1762 rpm Nameplate RPM
This 10 HP three-phase general purpose motor from Marathon is designed for a wide range of industrial applications, including manufacturing, oil and gas, and food processing. Its totally enclosed fan cooled design ensures efficient operation in high-temperature environments, while its rigid base mounting type provides stability and reliability. With a high efficiency rating of 92.4%, this motor helps reduce energy costs and minimize environmental impact. Suitable for continuous duty applications, it is ideal for use in pumps, fans, and other equipment where high torque and reliability are required. CE, CSA, and UL listed for added assurance.
Top product features:
- Three-phase operation for efficient power distribution
- Totally enclosed fan cooled motor enclosure design for improved cooling and reduced noise
- Ball motor bearings for smooth and quiet operation
Top product applications:
- Industrial machinery
- Pumping systems
- Conveying systems
General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 10 HP, Nameplate RPM 1762 rpm, Frame 215T, Voltage 575V AC, 60 Hz Hz, Three Phase, Full Load Amps 10.0 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Cast Iron, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 92.4 Percent, Continuous Duty, 1701-1800, CE, CSA, UL Listed
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 22.50
- Package Width: 16.81
- Package Height: 14.00
- Package Weight: 209.00
Product info last updated on January 27, 2026 1:46am UTC
Category: Motors
