Three-Phase General Purpose Motor, 5 HP, 215T Frame, 230/460V AC Voltage, 1180 rpm Nameplate RPM MPN:215TTFCD6076
Three-Phase General Purpose Motor, 5 HP, 215T Frame, 230/460V AC Voltage, 1180 rpm Nameplate RPM

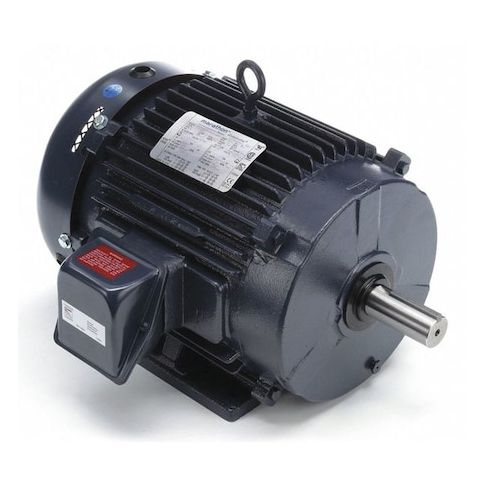

This 5 HP three-phase general purpose motor from Marathon is designed for heavy-duty applications that require high efficiency and reliability. With a nameplate RPM of 1180 and a voltage rating of 230/460V AC, this motor is suitable for industrial settings where continuous duty is required. Its totally enclosed fan cooled design and cast iron frame ensure durability and protection from harsh environments. The motor's 92.4% nominal efficiency and 1.15 service factor make it an ideal choice for applications such as pumps, fans, and conveyor systems, providing energy savings and increased productivity.
Top product features:
- Totally Enclosed Fan Cooled Motor Enclosure Design provides a safe and durable operating environment for the motor.
- Ball Motor Bearings ensure smooth and quiet operation, reducing wear and tear on the motor.
- Continuous Duty operation allows the motor to run for extended periods without overheating, making it suitable for high-demand applications.
Top product applications:
- Pumps and compressors
- Industrial machinery and equipment
- Material handling systems
General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 5 HP, Nameplate RPM 1180 rpm, Frame 215T, Voltage 230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 13.6/6.8 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Cast Iron, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 92.4 Percent, Continuous Duty, 1,101-1,200
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 22.50
- Package Width: 16.81
- Package Height: 14.00
- Package Weight: 189.00
Product info last updated on March 30, 2026 11:07pm UTC
Category: Motors
