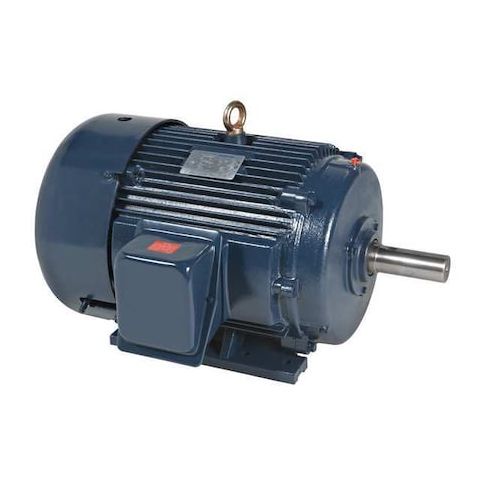

Three-Phase General Purpose Motor, 5 HP, 215T Frame, 575V AC Voltage, 1190 rpm Nameplate RPM MPN:215TTFCD6080
Three-Phase General Purpose Motor, 5 HP, 215T Frame, 575V AC Voltage, 1190 rpm Nameplate RPM
This 5 HP three-phase general purpose motor from Marathon is designed for heavy-duty industrial applications. With a totally enclosed fan cooled motor enclosure and rigid base mounting, it provides reliable performance in demanding environments. The motor's high efficiency and continuous duty rating make it suitable for applications such as conveyor systems, pumps, and compressors. Its durable cast iron frame and ball bearings ensure long-lasting operation. With a service factor of 1.15 and thermal protection, this motor is ideal for applications requiring high torque and power. It is UL, CSA, and CE listed for safety and compliance.
Top product features:
- Three-phase operation for efficient power distribution
- Totally enclosed fan cooled motor enclosure for reduced noise and improved cooling
- Ball bearings for smooth and quiet motor operation
Top product applications:
- Industrial machinery
- Pumps and compressors
- Conveyors and material handling equipment
General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 5 HP, Nameplate RPM 1190 rpm, Frame 215T, Voltage 575V AC, 60 Hz Hz, Three Phase, Full Load Amps 5.5 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Cast Iron, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 92.4 Percent, Continuous Duty, 1,101-1,200, CE, CSA, UL Listed
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 27.00
- Package Width: 19.00
- Package Height: 20.00
- Package Weight: 193.00
Product info last updated on February 4, 2026 1:18am UTC
Category: Motors
