Three-Phase General Purpose Motor, 15 HP, 254T Frame, 575V AC Voltage, 1772 rpm Nameplate RPM MPN:254TTFCD6030
Three-Phase General Purpose Motor, 15 HP, 254T Frame, 575V AC Voltage, 1772 rpm Nameplate RPM

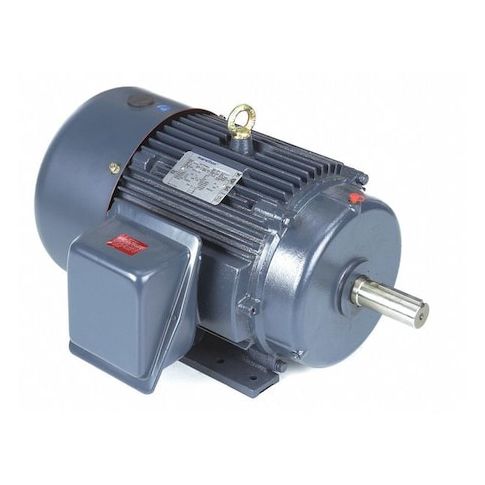

Boost your industrial operations with the reliable Marathon Three-Phase General Purpose Motor. This 15 HP motor is designed for continuous duty and features a 254T frame, 575V AC voltage, and a nameplate RPM of 1772. The totally enclosed fan cooled motor enclosure design ensures efficient cooling and reduced maintenance. Ideal for applications such as pumps, fans, and conveyor systems, this motor provides a high level of efficiency at 93.6% nominal efficiency. With a 1.15 service factor and ball bearings, this motor is built to last. CE, CSA, and UL listed for added assurance.
Top product features:
- Three-phase operation provides a stable and efficient power supply.
- Totally enclosed fan cooled design helps to prolong motor lifespan by reducing heat exposure.
- Ball bearings ensure smooth and quiet operation.
Top product applications:
- Industrial manufacturing processes
- Pumping systems for water treatment plants
- High-volume packaging machinery
General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 15 HP, Nameplate RPM 1772 rpm, Frame 254T, Voltage 575V AC, 60 Hz Hz, Three Phase, Full Load Amps 15.1 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Cast Iron, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 93.6 Percent, Continuous Duty, 1701-1800, CE, CSA, UL Listed
Additional Information
- Country of Origin: MX
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 15 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 27.00
- Package Width: 20.50
- Package Height: 18.00
- Package Weight: 309.00
Product info last updated on February 25, 2026 12:50am UTC
Category: Motors
