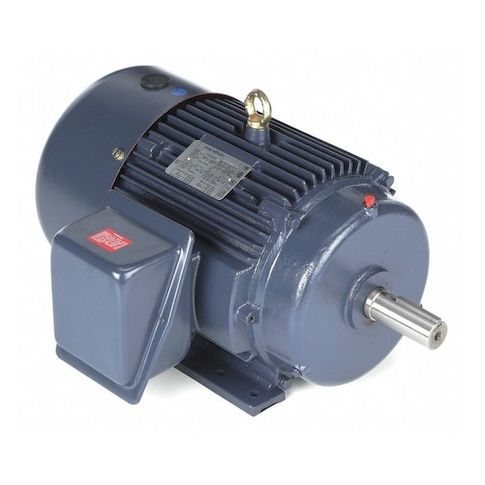

Three-Phase General Purpose Motor, 7 1/2 HP, 254T Frame, 230/460V AC Voltage, 1182 rpm Nameplate RPM MPN:254TTFCD6076
Three-Phase General Purpose Motor, 7 1/2 HP, 254T Frame, 230/460V AC Voltage, 1182 rpm Nameplate RPM
The Marathon 7 1/2 HP three-phase general purpose motor is designed for a wide range of applications including industrial equipment, pumps, and fans. Its totally enclosed fan cooled motor enclosure provides durability and protection in harsh environments. The motor's rigid base mounting type and cast iron frame ensure stability and long-lasting performance. With a nameplate RPM of 1182 and a service factor of 1.15, this motor is ideal for continuous duty applications. Its high efficiency and low amp draw make it a cost-effective solution for industrial and commercial use, reducing energy costs and increasing productivity.
Top product features:
- Three-Phase Design
- Totally Enclosed Fan Cooled Motor Enclosure
- Ball Motor Bearings
Top product applications:
- Pumping Systems
- Industrial Power Generation
- Material Handling Equipment
General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 7 1/2 HP, Nameplate RPM 1182 rpm, Frame 254T, Voltage 230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 19.8/9.9 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Cast Iron, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 85.5 Percent, Continuous Duty, 1,101-1,200
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 32.00
- Package Width: 24.00
- Package Height: 26.00
- Package Weight: 330.00
Product info last updated on March 28, 2026 9:39pm UTC
Category: Motors
