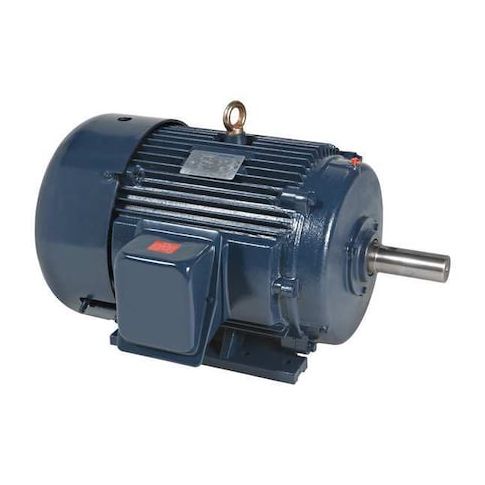

Three-Phase General Purpose Motor, 7 1/2 HP, 254T Frame, 575V AC Voltage, 1182 rpm Nameplate RPM MPN:254TTFCD6080
Three-Phase General Purpose Motor, 7 1/2 HP, 254T Frame, 575V AC Voltage, 1182 rpm Nameplate RPM
This 7.5 HP three-phase general purpose motor from Marathon is designed for heavy-duty applications in various industries. With a nameplate RPM of 1182, it provides reliable and efficient performance in continuous duty operations. The motor features a totally enclosed fan cooled design, cast iron frame, and ball bearings for long-lasting durability. Its 66.5% nominal efficiency and 1.15 service factor ensure optimal performance in a wide range of applications, including manufacturing, pumping, and material handling. Suitable for use in temperatures up to 40°C, this motor is CE, CSA, and UL listed for added assurance.
Top product features:
- Three-phase operation allows for efficient power distribution and motor performance.
- Totally enclosed fan cooled design provides a safe and reliable operating environment.
- Ball bearings enable smooth and durable motor operation.
Top product applications:
- Industrial Pumps
- Manufacturing Equipment
- Water Treatment Plants
General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 7 1/2 HP, Nameplate RPM 1182 rpm, Frame 254T, Voltage 575V AC, 60 Hz Hz, Three Phase, Full Load Amps 7.9 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Cast Iron, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 66.5 Percent, Continuous Duty, 1,101-1,200, CE, CSA, UL Listed
Additional Information
- Country of Origin: MX
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 15 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 27.00
- Package Width: 20.50
- Package Height: 18.00
- Package Weight: 294.00
Product info last updated on February 12, 2026 7:04am UTC
Category: Motors
