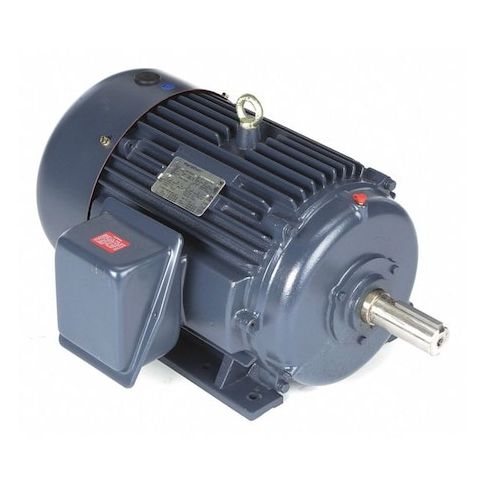

Three-Phase General Purpose Motor, 15 HP, 284T Frame, 230/460V AC Voltage, 1182 rpm Nameplate RPM MPN:284TTFCD6076
Three-Phase General Purpose Motor, 15 HP, 284T Frame, 230/460V AC Voltage, 1182 rpm Nameplate RPM
This 15 HP three-phase general purpose motor from Marathon is designed for heavy-duty applications requiring high efficiency and reliability. With a nameplate RPM of 1182 and a thermal protection class of F, this motor can operate in demanding environments. Its totally enclosed fan-cooled design and cast iron frame ensure durability and resistance to harsh conditions. Suitable for continuous duty, this motor is ideal for use in manufacturing, material handling, and other industrial settings where high performance and efficiency are critical. Its compact size and rugged construction make it an excellent choice for a wide range of applications.
Top product features:
- Totally Enclosed Fan Cooled Motor Enclosure Design
- Ball Motor Bearings
- CW/CCW Motor Shaft Rotation
Top product applications:
- Industrial Pumping Systems
- Centrifugal Pumps
- Conveyor Systems
General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 15 HP, Nameplate RPM 1182 rpm, Frame 284T, Voltage 230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 40.0/20.0 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Cast Iron, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 85.5 Percent, Continuous Duty, 1,101-1,200
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 31.20
- Package Width: 22.20
- Package Height: 18.00
- Package Weight: 377.00
Product info last updated on February 27, 2026 10:07am UTC
Category: Motors
