Three-Phase General Purpose Motor, 20 HP, 256T Frame, 230/460V AC Voltage, 3, 540 Nameplate RPM MPN:256TTFCD6001
Three-Phase General Purpose Motor, 20 HP, 256T Frame, 230/460V AC Voltage, 3, 540 Nameplate RPM

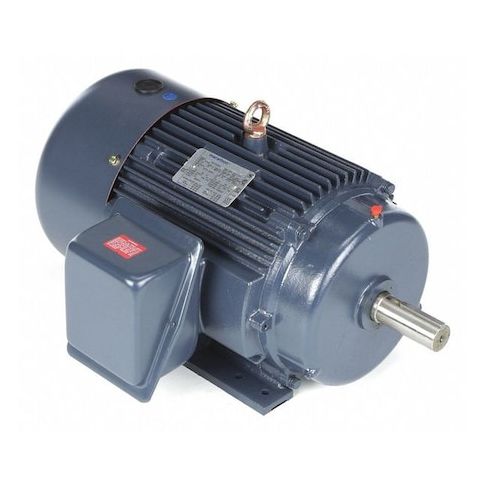

This 20 HP three-phase general purpose motor from Marathon is a reliable and efficient solution for a variety of industrial applications. With a nameplate RPM of 3,540 and a maximum ambient temperature of 40 degrees C, this motor can handle demanding tasks in a range of environments. Its cast iron frame and ball bearings ensure durability and long lifespan, while its 92.4% nominal efficiency reduces energy costs. Suitable for continuous duty, this motor is ideal for use in manufacturing, processing, and other industrial settings where high performance and reliability are critical. It meets CE, CSA, and UL standards for safety and quality.
Top product features:
- Three-phase operation for efficient power distribution
- Totally enclosed fan cooled design for reliable operation in various environments
- Ball bearings for smooth and quiet motor operation
Top product applications:
- Industrial Automation
- Manufacturing Process Control
- Material Handling Equipment
General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 20 HP, Nameplate RPM 3,540, Frame 256T, Voltage 230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 47.5/23.7 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Cast Iron, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 92.4 Percent, Continuous Duty, 3001-3600, CE, CSA, UL Listed
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 31.25
- Package Width: 22.25
- Package Height: 18.00
- Package Weight: 344.00
Product info last updated on February 8, 2026 7:35pm UTC
Category: Motors
