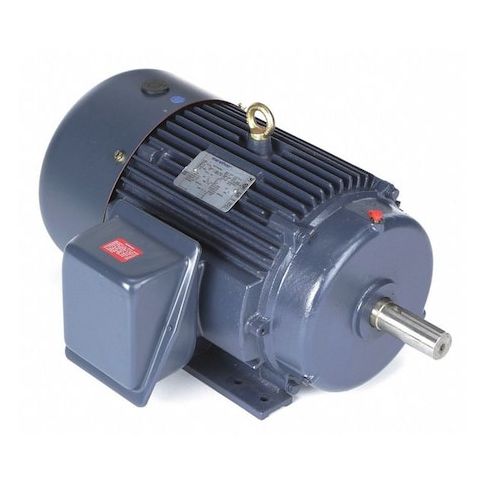

Three-Phase General Purpose Motor, 20 HP, 256T Frame, 575V AC Voltage, 1, 768 Nameplate RPM MPN:256TTFCD6030
Three-Phase General Purpose Motor, 20 HP, 256T Frame, 575V AC Voltage, 1, 768 Nameplate RPM
General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 20 HP, Nameplate RPM 1,768, Frame 256T, Voltage 575V AC, 60 Hz Hz, Three Phase, Full Load Amps 19.4 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Cast Iron, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 93.6 Percent, Continuous Duty, 1701-1800, CE, CSA, UL Listed
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 27.00
- Package Width: 32.00
- Package Height: 26.00
- Package Weight: 378.00
Product info last updated on February 28, 2026 10:09am UTC
Category: Motors
