Three-Phase General Purpose Motor, 30 HP, 286TS Frame, 230/460V AC Voltage, 3550 rpm Nameplate RPM MPN:286TSTFCD6001
Three-Phase General Purpose Motor, 30 HP, 286TS Frame, 230/460V AC Voltage, 3550 rpm Nameplate RPM

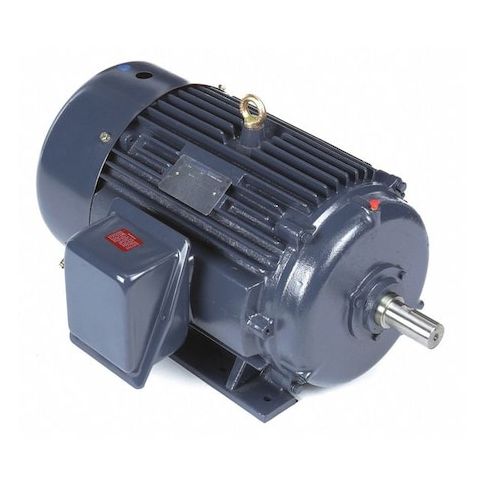

This 30 HP three-phase general purpose motor from Marathon is designed for heavy-duty applications requiring high efficiency and reliability. Suitable for continuous duty, it operates at 3550 rpm and features a totally enclosed fan cooled motor enclosure for optimal performance in harsh environments. With a service factor of 1.15 and ball bearings for smooth operation, this motor is ideal for use in manufacturing, material handling, and other industrial settings where high torque and power are needed. Its compact 286TS frame and rigid base mounting make it a versatile solution for a wide range of applications.
Top product features:
- Three-Phase Operation
- Totally Enclosed Fan Cooled Motor Enclosure Design
- Ball Motor Bearings
Top product applications:
- Pumps
- Conveyors
- Fans
General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 30 HP, Nameplate RPM 3550 rpm, Frame 286TS, Voltage 230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 71.0/35.5 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Cast Iron, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 95.4 Percent, Continuous Duty, 3001-3600
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 31.30
- Package Width: 22.30
- Package Height: 18.00
- Package Weight: 535.00
Product info last updated on February 24, 2026 8:40am UTC
Category: Motors
