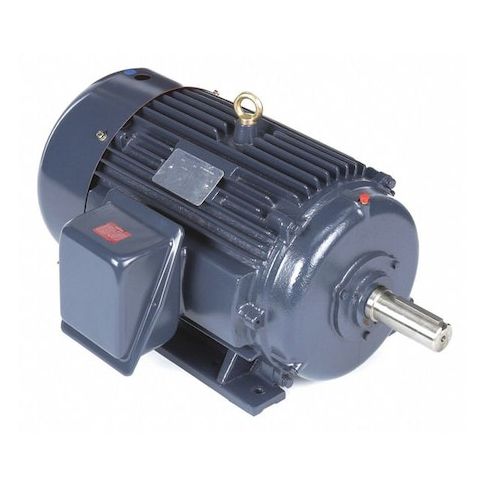

Three-Phase General Purpose Motor, 30 HP, 286T Frame, 230/460V AC Voltage, 1, 770 Nameplate RPM MPN:286TTFCD6026
Three-Phase General Purpose Motor, 30 HP, 286T Frame, 230/460V AC Voltage, 1, 770 Nameplate RPM
This 30 HP, three-phase general purpose motor is designed for a wide range of applications, including industrial processes, manufacturing, and heavy-duty machinery. With a nameplate RPM of 1,770 and a frame size of 286T, it offers high performance and reliability. The motor's totally enclosed fan cooled design and cast iron frame ensure efficient cooling and durability. Its high efficiency of 94.5% and continuous duty rating make it suitable for demanding applications. Ideal for use in facilities with high ambient temperatures, this motor is also CE, CSA, and UL listed for added safety and compliance.
Top product features:
- Totally Enclosed Fan Cooled Motor Enclosure Design provides a safe and reliable operating environment for the motor.
- Ball Motor Bearings ensure smooth and quiet operation of the motor.
- Continuous Duty operation allows the motor to run for extended periods without overheating.
Top product applications:
- Pump drive motor
- Conveyor system motor
- Industrial machinery drive motor
General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 30 HP, Nameplate RPM 1,770, Frame 286T, Voltage 230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 71.0/35.5 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Cast Iron, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 94.5 Percent, Continuous Duty, 1701-1800, CE, CSA, UL Listed
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 32.50
- Package Width: 27.00
- Package Height: 25.40
- Package Weight: 566.00
Product info last updated on February 21, 2026 2:57pm UTC
Category: Motors
