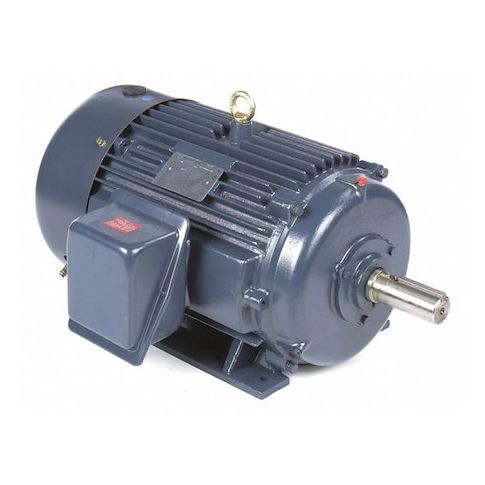

Three-Phase General Purpose Motor, 30 HP, 286T Frame, 575V AC Voltage, 1, 770 Nameplate RPM MPN:286TTFCD6030
Three-Phase General Purpose Motor, 30 HP, 286T Frame, 575V AC Voltage, 1, 770 Nameplate RPM
This 30 HP three-phase general purpose motor from Marathon is designed for a wide range of applications, including manufacturing, pumping, and material handling. With a nameplate RPM of 1,770 and a voltage of 575V AC, this motor provides reliable and efficient operation in heavy-duty environments. The totally enclosed fan cooled design and rigid base motor mounting ensure long motor life and easy installation. Suitable for continuous duty, this motor is ideal for applications requiring high power and efficiency, such as conveyor systems, fans, and pumps. Its compact size and CE, CSA, and UL listing make it a versatile choice for various industries.
Top product features:
- Three-phase operation for efficient power distribution
- Totally enclosed fan cooled motor enclosure for reliable operation in harsh environments
- Ball motor bearings for reduced maintenance and increased durability
Top product applications:
- Power generation and transmission systems
- Pumps and pumping systems
- Conveyor systems
General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 30 HP, Nameplate RPM 1,770, Frame 286T, Voltage 575V AC, 60 Hz Hz, Three Phase, Full Load Amps 28.4 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Cast Iron, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 94.5 Percent, Continuous Duty, 1701-1800, CE, CSA, UL Listed
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 35.00
- Package Width: 26.00
- Package Height: 23.20
- Package Weight: 523.00
