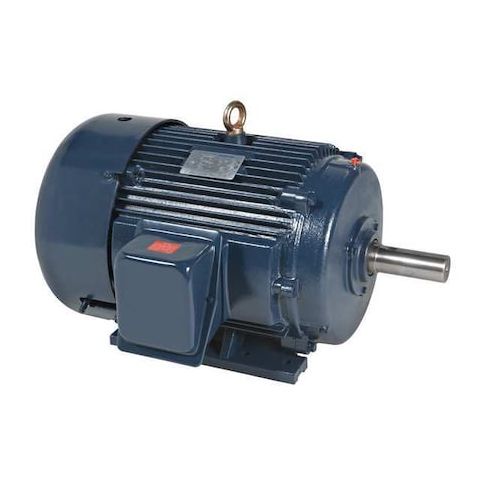

Three-Phase General Purpose Motor, 30 HP, 326T Frame, 230/460V AC Voltage, 1185 rpm Nameplate RPM MPN:326TTFCD6076
Three-Phase General Purpose Motor, 30 HP, 326T Frame, 230/460V AC Voltage, 1185 rpm Nameplate RPM
The Marathon 30 HP three-phase general purpose motor is a reliable and efficient solution for a wide range of industrial applications. With a nameplate RPM of 1185 and a high nominal efficiency of 93 percent, this motor provides smooth and quiet operation while minimizing energy consumption. Suitable for continuous duty, it features a totally enclosed fan cooled motor enclosure design and rigid base mounting for added stability. Ideal for use in manufacturing, processing, and material handling facilities, this motor is a cost-effective choice for applications requiring high power and reliability.
Top product features:
- Totally Enclosed Fan Cooled Motor Enclosure Design
- Ball Motor Bearings
- Three-Phase, Rigid Base Motor Mounting Type
Top product applications:
- Factory Automation
- Pumping Systems
- Conveyor Systems
General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 30 HP, Nameplate RPM 1185 rpm, Frame 326T, Voltage 230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 76.0/38.0 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Cast Iron, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 93 Percent, Continuous Duty, 1,101-1,200
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 39.00
- Package Width: 32.00
- Package Height: 24.00
- Package Weight: 630.00
Product info last updated on February 20, 2026 11:07pm UTC
Category: Motors
