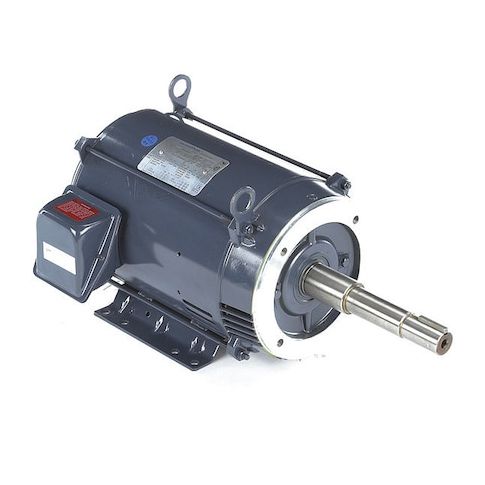

CC Pump Motor, 3-Phase, 15 HP, 3450 rpm MPN:215TTDBD6012
CC Pump Motor, 3-Phase, 15 HP, 3450 rpm
The Marathon CC Pump Motor is a reliable and efficient solution for demanding pump applications. This 15 HP, 3-phase motor operates at 3450 rpm, providing continuous duty cycle performance. With a durable design and ball bearings, it withstands the rigors of heavy use. The close-coupled design minimizes vibration and noise, while the inverter-rated motor ensures smooth operation with variable torque. Suitable for a wide range of applications, including industrial and commercial settings, this motor is an ideal choice for pumps, water treatment plants, and other high-pressure systems. Its compact size and easy installation make it a convenient option for many industries.
Top product features:
- Close-Coupled design allows for efficient heat dissipation and reduced vibration
- Three-phase operation enables high power density and efficient energy use
- 10:1 variable torque inverter rating allows for smooth and precise control over motor speed
Top product applications:
- Pump
- Inverter
- Motor
Close-Coupled Pump Motor, Body Dia. 9.5 in, Bolt Circle Dia. 7 1/4 in, CC Number CC003A, Conduit Box Location Exterior, Conduit Box Position F1, F2, Duty Cycle Continuous, Frame 215JP, Hz 60 Hz, Full Load Amps 36.0/18.0, Height 11 in, HP 15, Ins. Class F, Inverter Rated Yes, Inverter Rating 10:1 Variable Torque, 2:1 Constant Torque, Length Less Shaft 15 in, Max. Ambient Temp. 40 Degrees C, Motor Application Pump, Motor Bearings Ball, Motor Design 3-Phase
Additional Information
- Country of Origin: MX
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 17 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 27.00
- Package Width: 20.50
- Package Height: 18.00
- Package Weight: 130.00
Product info last updated on February 18, 2026 7:20am UTC
Category: Motors
