CC Pump Motor, 3-Phase, 7-1/2 HP, 1750 rpm MPN:213TTDBD6037

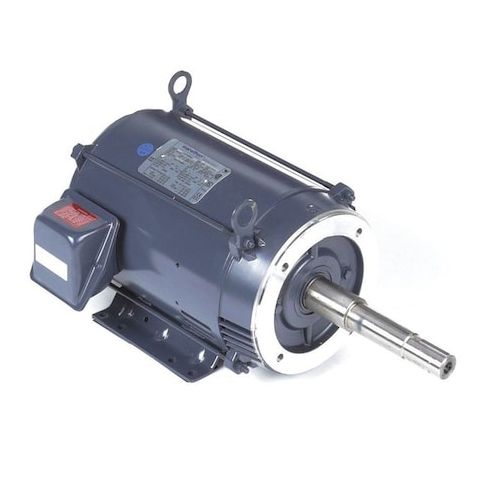

CC Pump Motor, 3-Phase, 7-1/2 HP, 1750 rpm
This 7.5 HP close-coupled pump motor is designed for continuous duty cycles in a wide range of applications, including industrial and commercial settings. Its 3-phase design and inverter-rated capabilities make it suitable for use with variable torque and constant torque applications. The motor's ball bearings ensure smooth and efficient operation, while its Class F insulation provides reliable performance in high-temperature environments. With a compact design and easy installation, this motor is ideal for use in water treatment, oil and gas, and chemical processing plants, as well as in wastewater treatment and pumping systems.
Top product features:
- Close-Coupled design for reduced installation and maintenance time
- Inverter Rated for variable torque operation
- Ball bearings for smooth and long-lasting motor operation
Top product applications:
- Pump
- Inverter Rated Motor
- Three-Phase Motor
Close-Coupled Pump Motor, Body Dia. 9.5 in, Bolt Circle Dia. 7 1/4 in, CC Number CC003A, Conduit Box Location Exterior, Conduit Box Position F1, F2, Duty Cycle Continuous, Frame 213JP, Hz 60 Hz, Full Load Amps 19.8/9.9, Height 11 in, HP 7 1/2, Ins. Class F, Inverter Rated Yes, Inverter Rating 10:1 Variable Torque, 2:1 Constant Torque, Length Less Shaft 15 in, Max. Ambient Temp. 40 Degrees C, Motor Application Pump, Motor Bearings Ball, Motor Design 3-Phase
Additional Information
- Country of Origin: MX
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 15 days
- Minimum Order Quantity: 2
- Unit of Measure: EA
- Package Length: 48.00
- Package Width: 40.00
- Package Height: 21.00
- Package Weight: 280.00
Product info last updated on April 30, 2026 1:21pm UTC
Category: Motors
