CC Pump Motor, 5 HP, 3505 rpm, 182JP, 3-Ph MPN:182TTDBD6012

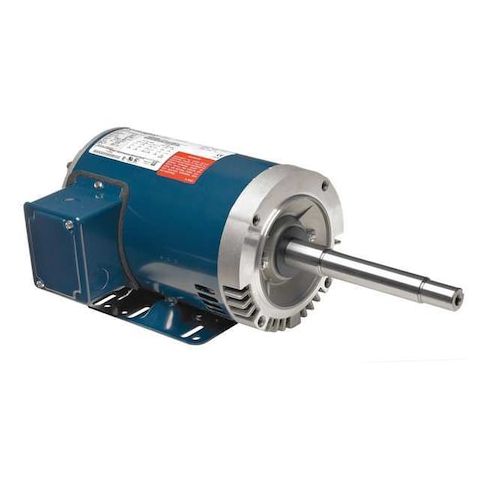

CC Pump Motor, 5 HP, 3505 rpm, 182JP, 3-Ph
The Marathon CC Pump Motor is a reliable and efficient solution for a wide range of applications, including industrial and commercial use. With its 5 HP, 3-phase design and 3505 rpm speed, this motor is ideal for powering pumps in demanding environments. The close-coupled design provides a compact and durable package, while the ball bearings ensure smooth and quiet operation. Suitable for continuous duty cycles, this motor is perfect for applications such as wastewater treatment, chemical processing, and HVAC systems. Its inverter-rated design also makes it a great choice for variable torque applications.
Top product features:
- Close-coupled design allows for a compact installation
- Ball bearings provide long motor life
- Inverter-rated design enables variable torque control
Top product applications:
- Pump
- Motor Application
- Inverter Rated
Close-Coupled Pump Motor, Body Dia. 8.4 in, Bolt Circle Dia. 5 7/8 in, CC Number CC003A, Conduit Box Location Exterior, Conduit Box Position F1, F2, Duty Cycle Continuous, Frame 182JP, Hz 60 Hz, Full Load Amps 13.2/6.6, Height 9 13/16 in, HP 5, Ins. Class F, Inverter Rated Yes, Inverter Rating 10:1 Variable Torque, 2:1 Constant Torque, Length Less Shaft 10 3/8 in, Max. Ambient Temp. 40 Degrees C, Motor Application Pump, Motor Bearings Ball, Motor Design 3-Phase
Additional Information
- Country of Origin: MX
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 15 days
- Minimum Order Quantity: 2
- Unit of Measure: EA
- Package Length: 2.00
- Package Width: 26.88
- Package Height: 18.00
- Package Weight: 28.76
Product info last updated on February 16, 2026 2:31pm UTC
Category: Motors
